DAMP 2.2800HD
2 × 2800 W touring amplifier with DSP
- In-built DSP & FIR
- 4Ω, 8Ω
- Class-D with PFC
- 96 kHz / 24-bit AD/DA
- +18 dBu max input level
- 19", 1U design

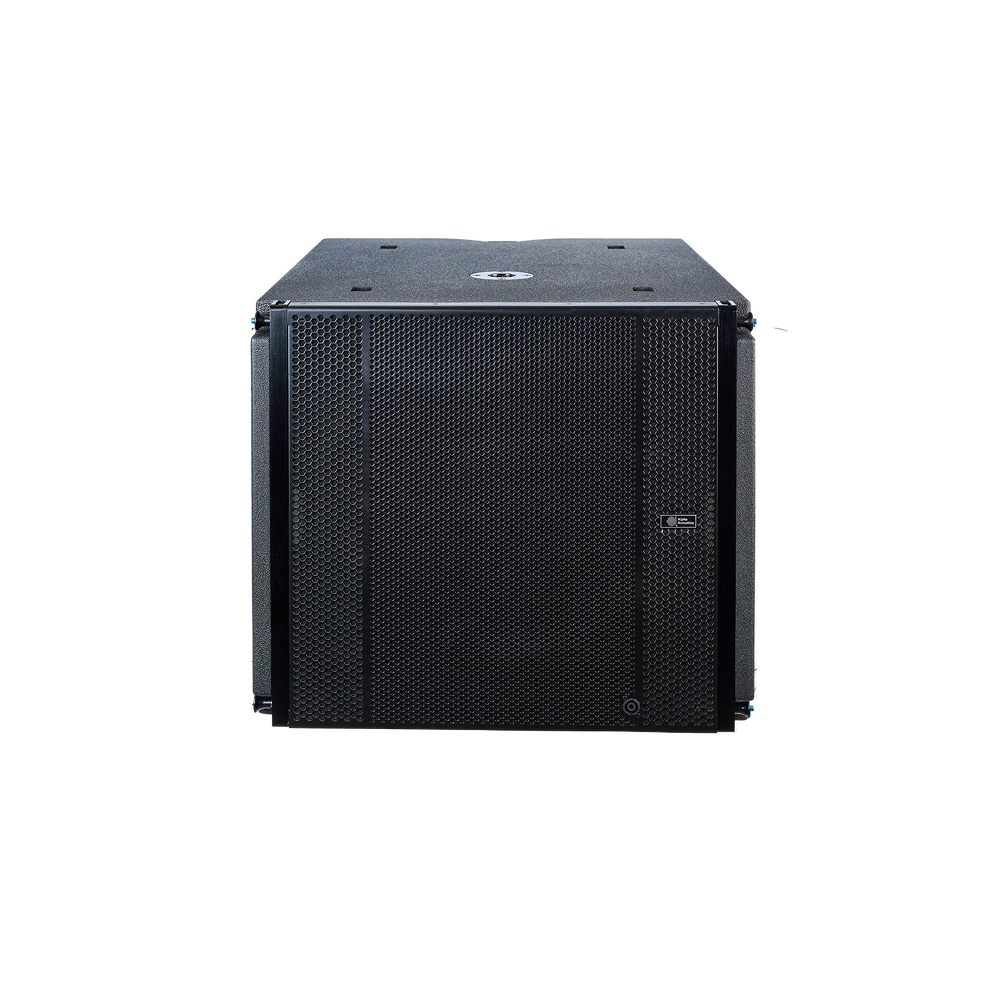

KROSS 21SUB
The Alpha Acoustics® KROSS 21SUB is the high-power low-frequency element of the KROSS line array system. With a 21″ LF driver, deep 32 Hz extension, and 1600 W RMS power handling (6400 W peak), it delivers massive impact for touring and installed sound. Use it ground-stacked or flown; deploy three or more units for cardioid arrays to control stage bleed and room modes.
- Low-frequency extension down to 32 Hz
- 1600 W RMS / 6400 W peak handling
- Flyable and ground-stackable configurations
- Cardioid operation with 3+ subs
- Compact, installation-friendly footprint
Specialties of Speaker
-
Transducer
1 × 21″ LF
-
Power (RMS)
1600 W (6400 W Peak)
-
Maximum SPL
Up to 139 dB
-
Design
Passive, flyable, ported
-
Frequency Response
32 Hz – 200 Hz
-
Finish
Black, Custom RAL colors
Specifications
Electroacoustic
- Transducer1 × 21″ LF
- Frequency Response32 Hz – 200 Hz
- Sensitivity100 dB
- Maximum SPL139 dB
- Power (RMS/Peak)1600 W / 6400 W
- Impedance8 Ω
- Connectors2 × NL4 SpeakON
Design
- TypePassive flyable subwoofer (ported)
- EnclosureMulti-layer birch plywood
- ProtectionBall-proof reinforced grille
- FinishBlack, Custom RAL colors
Physical
- Dimensions (W×D×H)700 × 808 × 608 mm
- Weight69 kg
Suggested Amplifiers
Move Air with KROSS 21SUB
From touring rigs to fixed installs, KROSS 21SUB brings thunderous, controlled low-end. Fly it, stack it, and deploy cardioid arrays for precision bass where you need it.
Request a Demo
