DAMP 2.2800HD amplifier

DAMP 2.2800HD

The Alpha Acoustics DAMP 2.2800HD combines high power, refined sound, and advanced DSP in a compact 1U design. Delivering clean, controlled performance with FIR filtering, EQ, dynamics, and delay, it ensures precise system tuning for any application. With intuitive control via TCP/IP, USB, and a bright IPS display, plus built-in protection for reliable operation, the DAMP 2.2800HD is the perfect choice for auditoriums, houses of worship, touring, and professional installations.

  • 2 × 2800W @ 8Ω, 2 × 4500W @ 4Ω
  • Class D amplification with PFC for high efficiency and stable performance.
  • Built-in DSP with FIR support
  • High resolution 96kHz/24-bit AD/DA converters for superior audio quality.
  • Advanced protection – DSP limiter, thermal, DC, surge, short circuit, and power safety.
  • 1U lightweight design with a color IPS display for easy monitoring.

Specialties of Amplifier

  • Channels

    2

  • Power

    2 × 2800W @8Ω
    2 × 4500W @4Ω

  • Max input level

    +17dBu

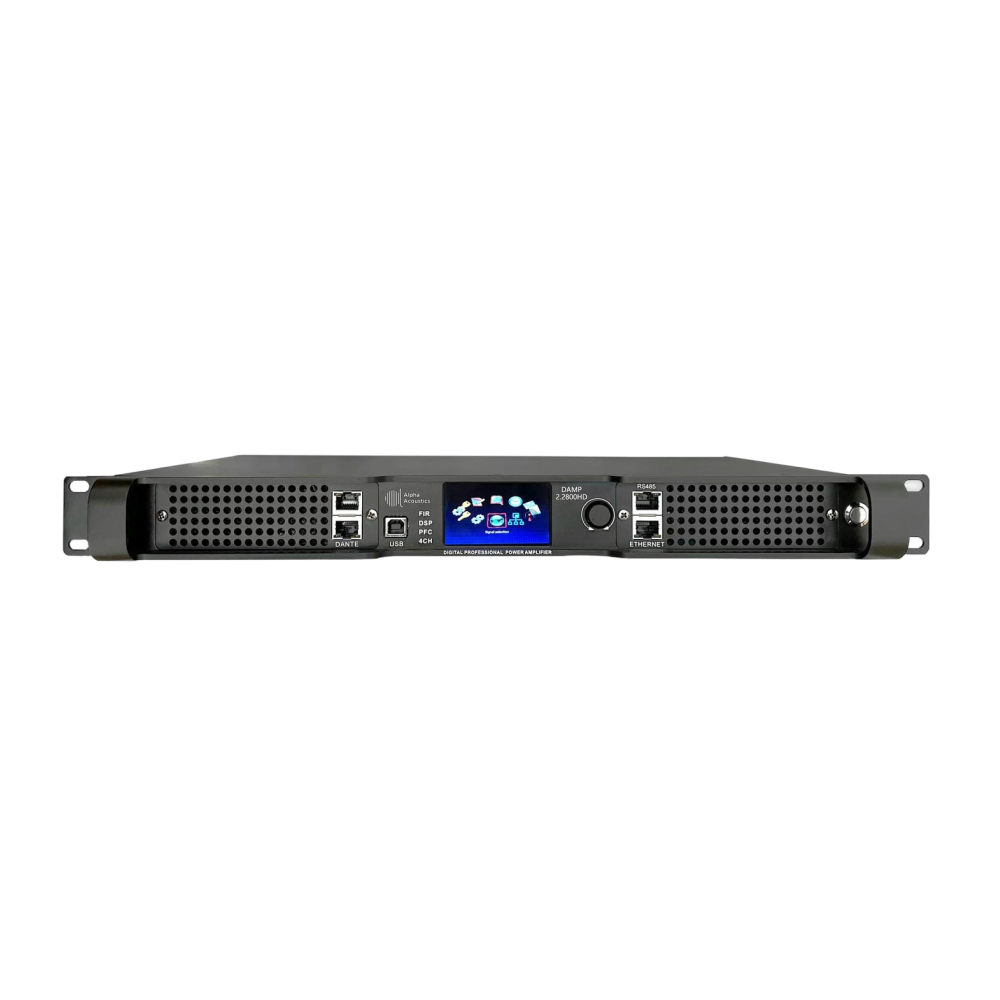

DAMP 2.2800HD detail image
  • SNR

    >104dB

  • THD

    <1%

  • AD/DA

    96kHz / 24-bit

Specifications

Electroacoustic

  • No. of Channels2
  • Impedance4Ω, 8Ω
  • Power2 x 4500W @4Ω
    2 x 2800W @8Ω
  • Max input level+17dBu
  • SNR>104dB
  • THD<1%
  • AD/DA96kHz / 24-bit
  • DSP FunctionsMatrix, EQ, Noise Gate, Delay, FIR, Compression, Limiter
  • FIR1024 taps
  • Audio Input ConnectorXLR
  • Audio Output ConnectorSpeakon
  • ControlTCP/IP, USB 2.0 (Type B)
  • IndicatorsPower
  • ProtectionDSP limiter; High temperature, DC, Short circuit, Back EMF, Peak current limiter; Surge current limiter; Startup delay; Over voltage/under voltage protection

Design

  • DesignClass D with PFC
  • ColorBlack
  • EnclosureAluminum Alloy
  • 1UYes

Physical

  • Dimensions (W×D×H)483 x 550 x 44.5mm
  • Net Weight8.5 Kg
  • DisplayIPS display

Downloads

Documents

Smarter Power.
Precise Control.

Harness massive headroom with FIR-precise control—DAMP 2.2800HD delivers clean power, bulletproof protection, and effortless management for mission-critical installs.
