KONTROL 808DAN audio processor with Dante

KONTROL 808DAN

The Kontrol 808D is an 8×8 DSP processor with Dante™ integration, built for professional AV and conferencing environments. With analog and Dante I/O, it offers flexible routing and precise audio processing for modern installations. Powered by an advanced DSP platform, it features EQ, delay, compression, auto-mix, ANC/AEC, and camera control, delivering clean, reliable audio performance. A built-in 2×2 USB interface ensures seamless PC integration for conferencing and playback.

  • 8×8 analog I/O with Dante™ audio networking
  • Full DSP toolkit – EQ, delay, compression, auto-mix
  • Camera control & 2×2 USB audio – perfect for conferencing
  • Low-latency, high-clarity audio performance
  • Compact 1U rackmount design for easy integration

Specialties of Processor

  • Channels

    Input: 8, Output: 8

  • AD/DA

    24-bit / 48 kHz

  • Max Input Level

    +12 dBu (Line), −7 dBu (Mic)

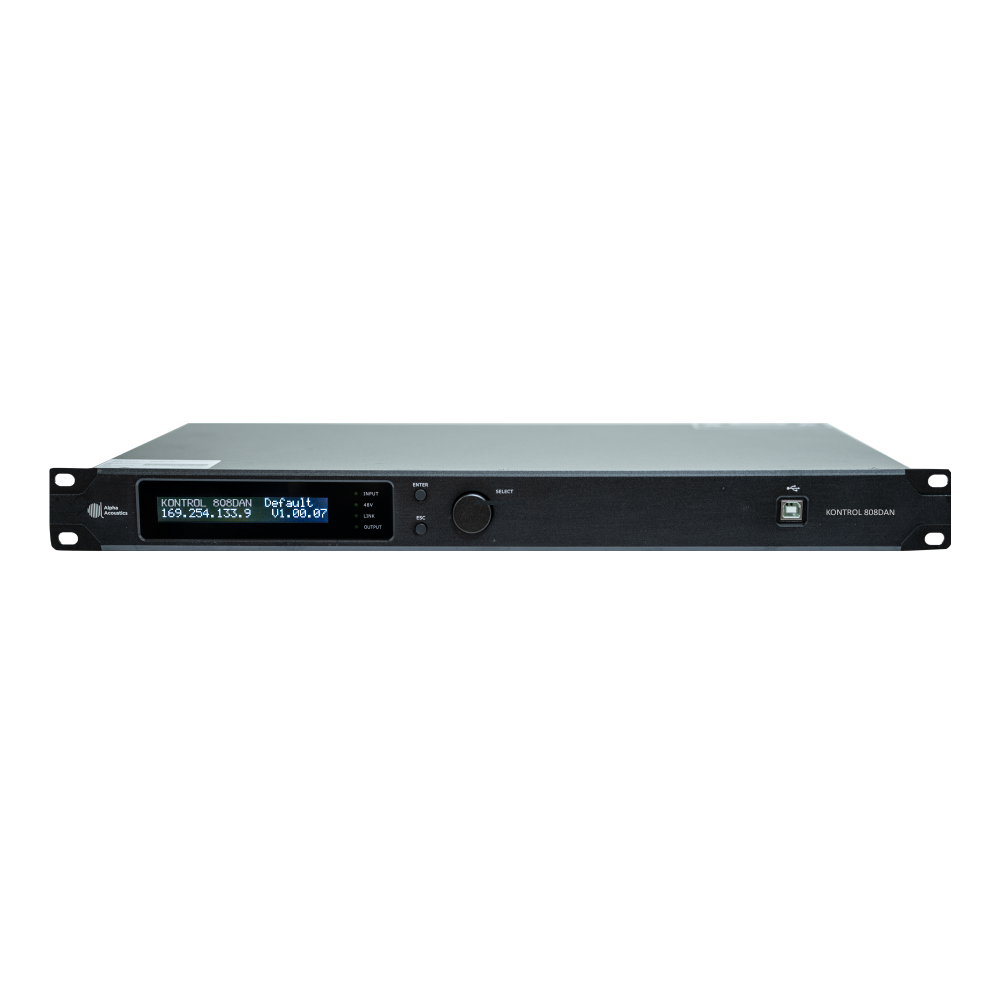

KONTROL 808DAN detail image

  • SNR

    >90 dB

  • THD

    <1%

  • Key DSP

    Matrix, EQ, Delay, Compression, Auto Mix

Specifications

Electroacoustic

  • DesignFixed Architecture Commercial DSP Matrix
  • No. of ChannelsInput: 8, Output: 8
  • No. of InputsAnalogue: 8, Dante: 8, USB: 2
  • No. of OutputsAnalogue: 8, Dante: 8, USB: 2
  • AD/DA24-bit / 48 kHz
  • Max Input Level+12 dBu (Line), −7 dBu (Mic)
  • Max Output Level+12 dBu
  • SNR>108 dB
  • THD<1%
  • DSP FunctionsMatrix, EQ, Noise Gate, ANC, AEC, AFC, Auto Mix, Delay, Compression, Limiter, Camera Control
  • Audio Input ConnectorBalanced Euro block connector
  • Audio Output ConnectorBalanced Euro block connector
  • ControlRS232, RS485, GPIO, TCP/IP (Alphanet), USB 2.0 (Type B)
  • DisplayLCD display
  • IndicatorsPower, Signal
  • ProtectionDSP limiter, High temperature, Over/under voltage protection

Design

  • ColorBlack
  • EnclosureAluminum Alloy
  • Form Factor1U

Physical

  • Dimensions (W×D×H)483 x 265 x 44.5mm
  • Net Weight3.3 kg
