KONTROL 808 audio processor

KONTROL 808

The Kontrol 808 is a reliable 8×8 audio processor designed for corporate AV, conference halls, and commercial installations. It offers precise routing, speaker management, and low-latency processing, making it easy to handle complex audio setups. Equipped with a robust DSP engine, it provides clean, clear sound and essential processing tools like EQ, delay, and compression. It also includes camera control for AV-integrated environments and 2×2 USB audio for easy digital connectivity. Built-in protections ensure stable operation, and the intuitive interface allows for straightforward system control.

  • 8×8 routing – flexible for various setups
  • DSP processing – EQ, delay, compression
  • Camera control & 2×2 USB audio – streamlined AV integration
  • Low-latency performance – reliable real-time audio
  • Compact 1U design – easy integration into racks

Specialties of Processor

  • Channels

    Input: 8, Output: 8

  • AD/DA

    24-bit / 48 kHz

  • Max Input Level

    +12 dBu (Line), −7 dBu (Mic)

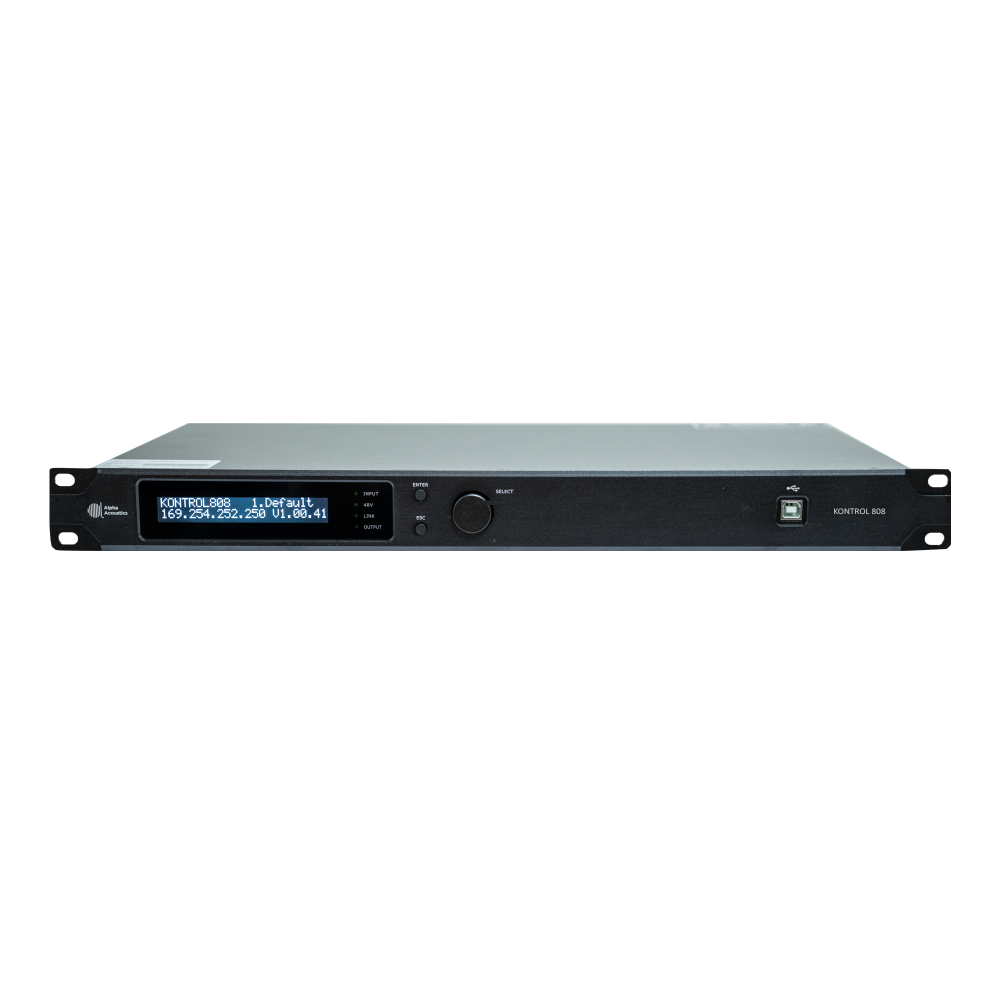

KONTROL 808 detail image

  • SNR

    >90 dB

  • THD

    <1%

  • Key DSP

    Matrix, EQ, Delay, Compression

Specifications

Electroacoustic

  • DesignFixed Architecture Commercial DSP Matrix
  • No. of ChannelsInput: 8, Output: 8
  • No. of InputsAnalogue: 8, USB: 2
  • No. of OutputsAnalogue: 8, USB: 2
  • AD/DA24-bit / 48 kHz
  • Max Input Level+12 dBu (Line), −7 dBu (Mic)
  • Max Output Level+12 dBu
  • SNR>108 dB
  • THD<1%
  • DSP FunctionsMatrix, EQ, Noise Gate, ANC, AEC, AFC, Auto Mix, Delay, Compression, Limiter, Camera Control
  • Audio Input ConnectorBalanced Euro block connector
  • Audio Output ConnectorBalanced Euro block connector
  • ControlRS232, RS485, GPIO, TCP/IP (Alphanet), USB 2.0 (Type B)
  • DisplayLCD display
  • IndicatorsPower, Signal
  • ProtectionDSP limiter, High temperature, Over/under voltage protection

Design

  • ColorBlack
  • EnclosureAluminum Alloy
  • Form Factor1U

Physical

  • Dimensions (W×D×H)483 x 265 x 44.5mm
  • Net Weight3.3 kg

Downloads

Documents

PDF icon Datasheet

Suggested Devices

KONTROL TOUCH 5

KONTROL TOUCH 5

Customizable wall controller that can easily integrate with All Devices

  • POE+ Powered
  • 5.5" IPS touch screen
  • Customizable UI
  • Control multiple device at a time
  • Flexible Control
VIEW DETAILS

Confidence in Every Conversation

Clear meetings, seamless installs, happy clients—KONTROL 808 keeps your brand sounding professional in every room.

Request a Demo
