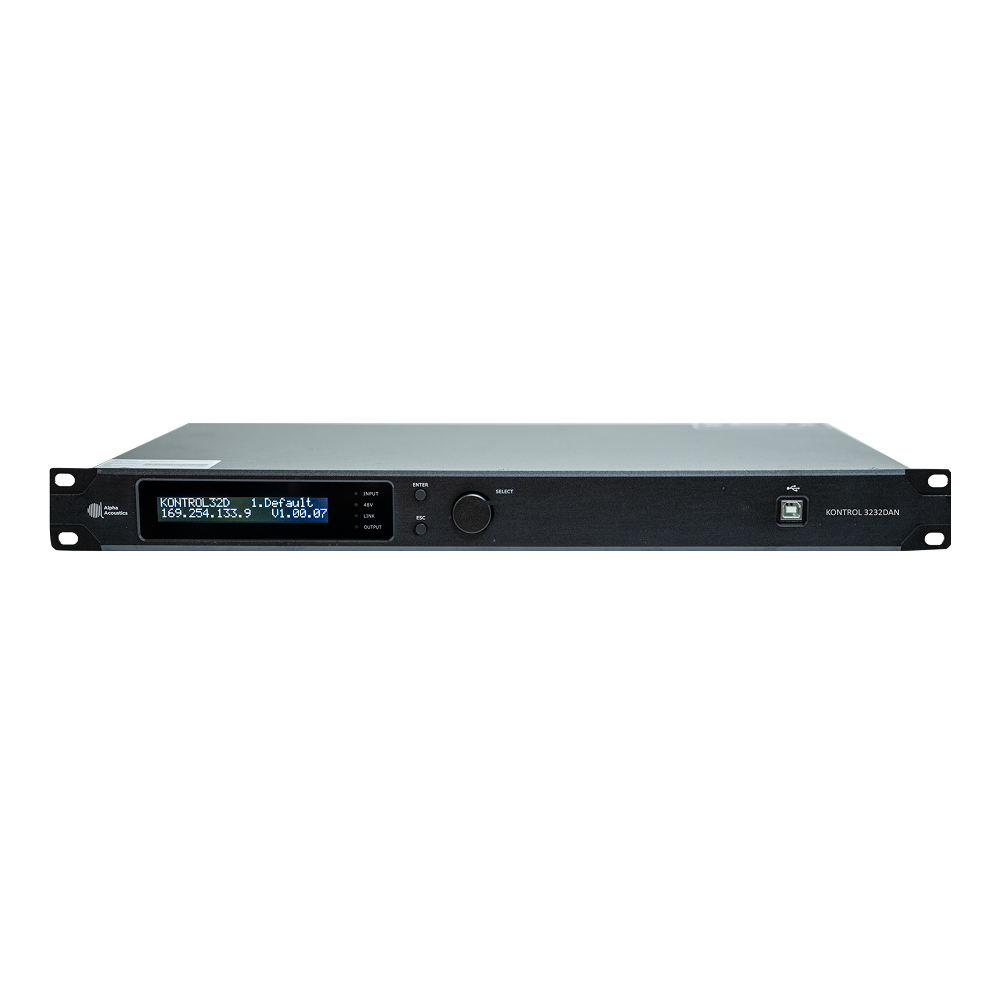

KONTROL 3232DAN audio processor with Dante

KONTROL 3232DAN

The KONTROL 3232DAN is a 32x32 DSP processor designed for large-scale commercial audio installations. Featuring 16×16 analog I/O and 32×32 Dante™ (upgradable to 64×64) channels, it combines powerful DSP processing with flexible routing across both networked and traditional systems. Equipped with advanced DSP functions including EQ, delay, compression, auto-mix, ANC, AEC, and camera control, the processor ensures precise audio performance with exceptional clarity and control. A 2×2 USB interface provides seamless PC integration for conferencing, recording, and playback.

  • 16×16 analog I/O + 32×32 Dante™ channels
  • Upgradable to 64×64 Dante™ channels
  • Full DSP toolkit – EQ, delay, compression, auto-mix, ANC/AEC
  • 2×2 USB audio & camera control for conferencing environments
  • Low-latency, high-definition processing for critical applications
  • 1U rackmount design for efficient integration in complex systems

Specialties of Processor

  • Channels

    Inputs: 32, Outputs: 32

  • AD/DA

    24-bit / 48 kHz

  • Max Input Level

    +12 dBu (Line), −7 dBu (Mic)

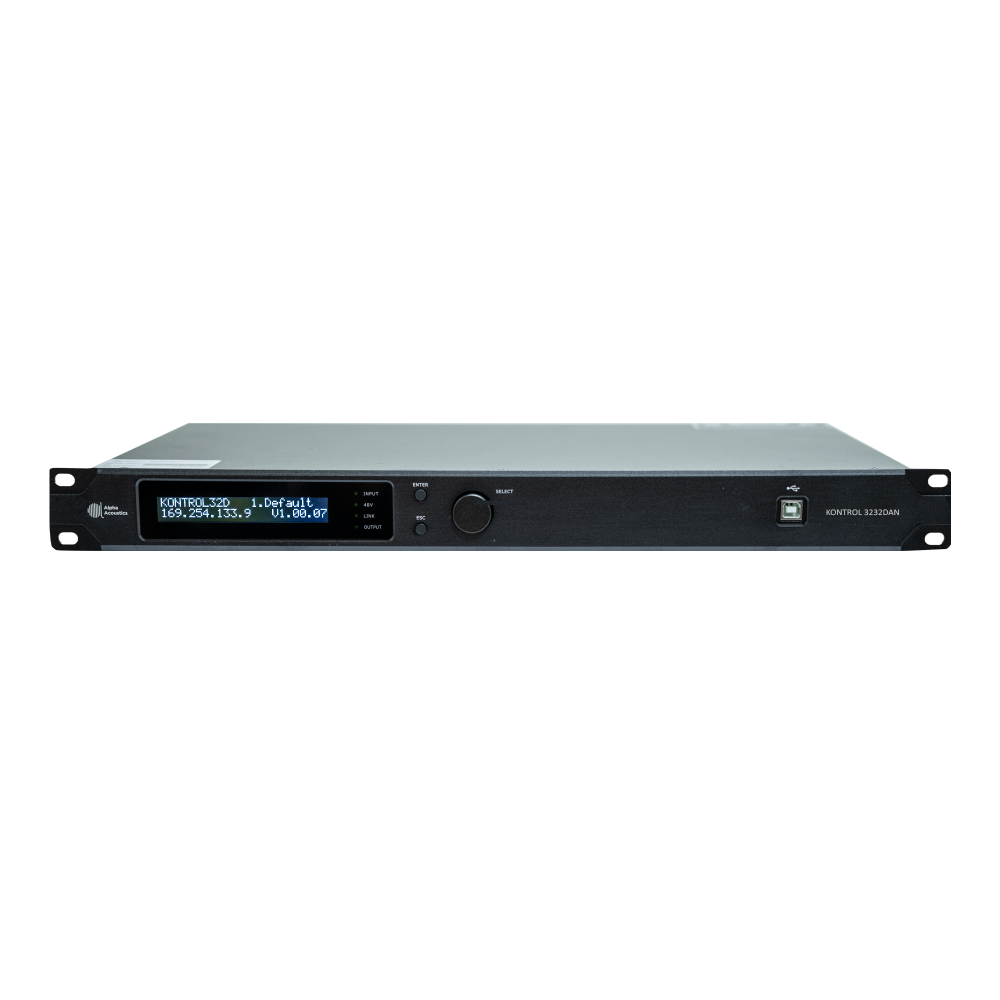

KONTROL 3232DAN detail image

  • SNR

    >110 dB

  • THD

    <1%

  • Key DSP

    Matrix, EQ, Delay, Compression, Auto Mix

Specifications

Electroacoustic

  • DesignFixed Architecture Commercial DSP Matrix
  • No. of ChannelsInput: 32, Output: 32
  • No. of InputsAnalogue: 16, Dante: 32, USB: 2
  • No. of OutputsAnalogue: 16, Dante: 32, USB: 2
  • AD/DA24-bit / 48 kHz
  • Max Input Level+12 dBu (Line), −7 dBu (Mic)
  • Max Output Level+12 dBu
  • SNR>110 dB
  • THD<1%
  • DSP FunctionsMatrix, EQ, Noise Gate, ANC, AEC, AFC, Auto Mix, Delay, Compression, Limiter, Camera Control
  • Audio Input ConnectorBalanced Euro block connector
  • Audio Output ConnectorBalanced Euro block connector
  • ControlRS232, RS485, GPIO, TCP/IP (Alphanet), USB 2.0 (Type B)
  • DisplayLCD display
  • IndicatorsPower, Signal
  • ProtectionDSP limiter, High temperature, Over/under voltage protection

Design

  • ColorBlack
  • EnclosureAluminum Alloy
  • Form Factor1U

Physical

  • Dimensions (W×D×H)483 x 265 x 44.5mm
  • Net Weight3.8 kg

Downloads

Documents

PDF icon Datasheet
