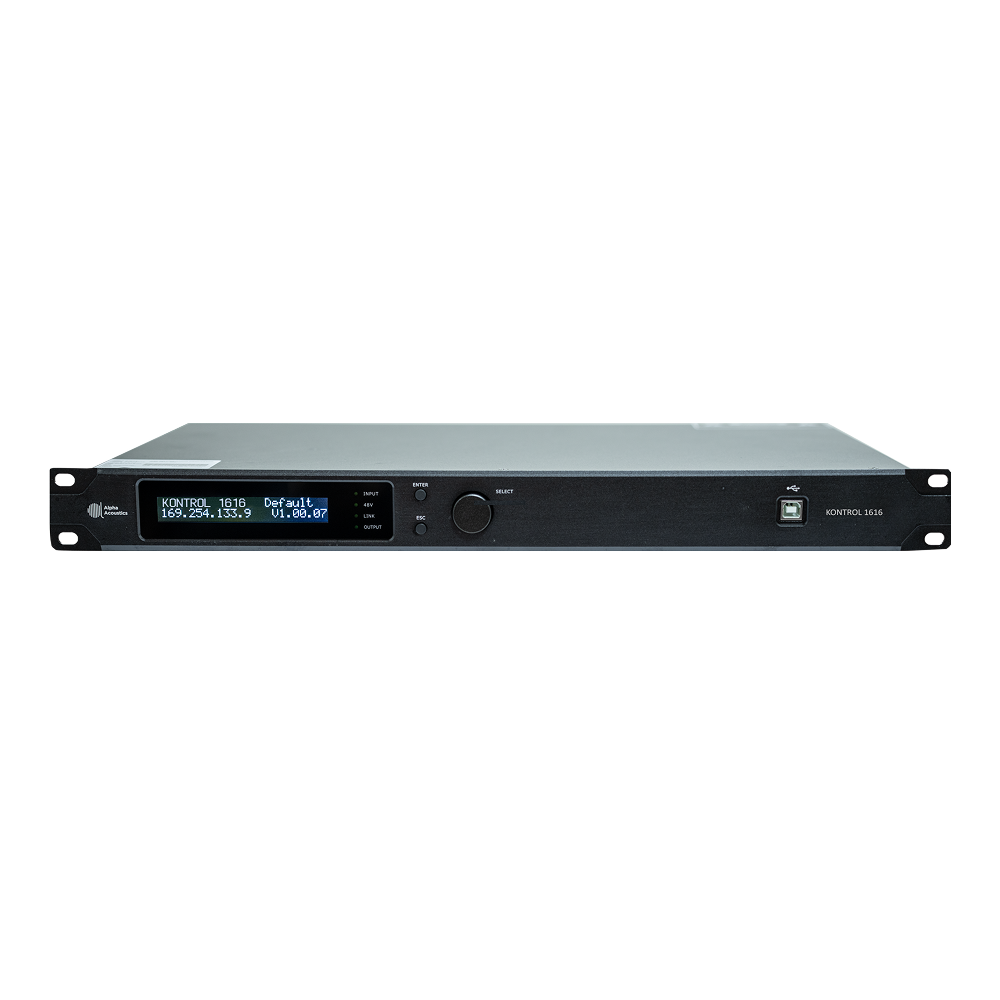

KONTROL 1616 audio processor

KONTROL 1616

The Kontrol 1616 is a versatile 16×16 audio processor designed for large-scale installations such as conference centers, and commercial AV environments. It provides full-scale routing, advanced DSP processing, and low-latency audio management, making complex setups simple and reliable. Its powerful DSP engine delivers EQ, delay, compression, auto-mix, and more, ensuring clean, precise sound across all outputs. The unit also includes camera control for integrated AV systems and 2×2 USB audio for seamless digital connectivity. Built-in protections ensure safe, stable operation in demanding installations.

  • 16×16 routing – handles large and complex systems
  • Advanced DSP – EQ, delay, compression, auto-mix
  • Camera control & 2×2 USB audio – simplified AV integration
  • Low-latency performance – precise, real-time audio
  • Rack-friendly design – 1U form factor for easy installation

Specialties of Processor

  • Channels

    Input: 16, Output: 16

  • AD/DA

    24-bit / 48 kHz

  • Max Input Level

    +12 dBu (Line), −7 dBu (Mic)

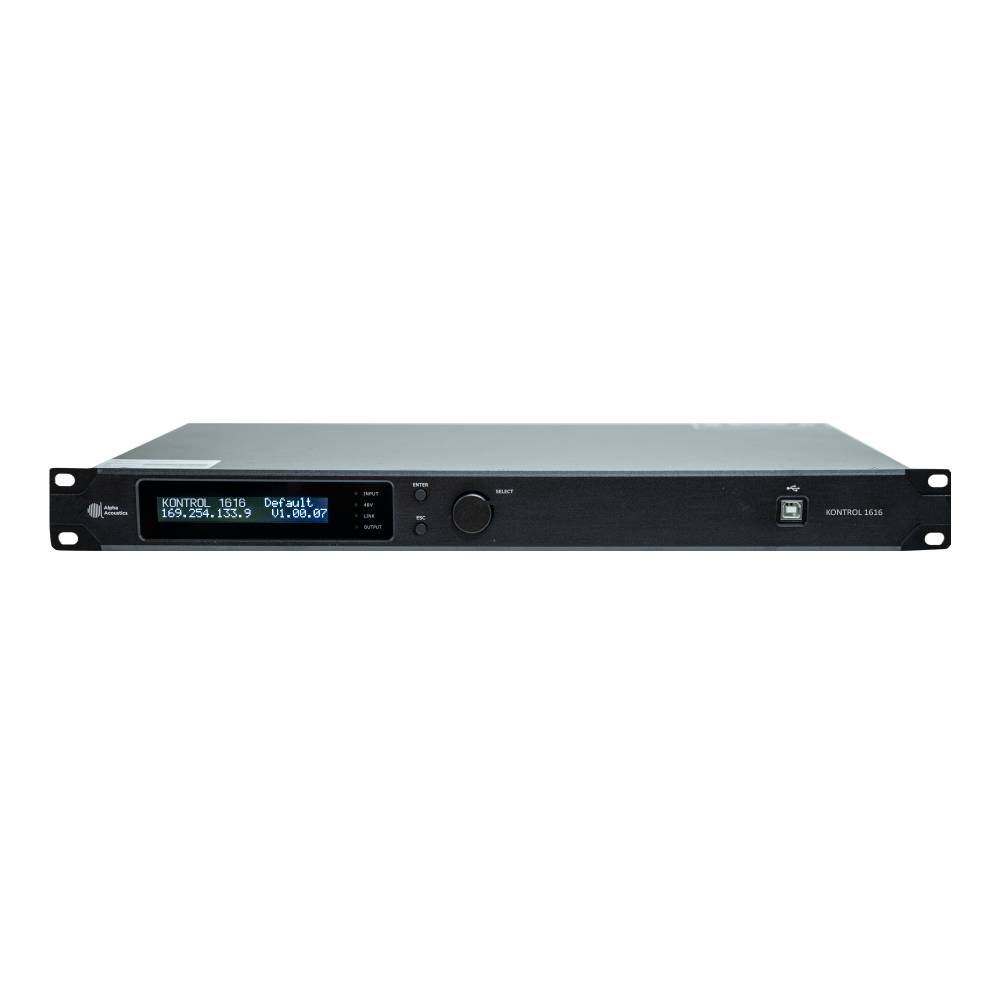

KONTROL 1616 detail image

  • SNR

    >110 dB

  • THD

    <1%

  • Key DSP

    Matrix, EQ, Delay, Compression, Auto Mix

Specifications

Electroacoustic

  • DesignFixed Architecture Commercial DSP Matrix
  • No. of ChannelsInput: 16, Output: 16
  • No. of InputsAnalogue: 16, USB: 2
  • No. of OutputsAnalogue: 16, USB: 2
  • AD/DA24-bit / 48 kHz
  • Max Input Level+12 dBu (Line), −7 dBu (Mic)
  • Max Output Level+12 dBu
  • SNR>110 dB
  • THD<1%
  • DSP FunctionsMatrix, EQ, Noise Gate, ANC, AEC, AFC, Auto Mix, Delay, Compression, Limiter, Camera Control
  • Audio Input ConnectorBalanced Euro block connector
  • Audio Output ConnectorBalanced Euro block connector
  • ControlRS232, RS485, GPIO, TCP/IP (Alphanet), USB 2.0 (Type B)
  • DisplayLCD display
  • IndicatorsPower, Signal
  • ProtectionDSP limiter, High temperature, Over/under voltage protection

Design

  • ColorBlack
  • EnclosureAluminum Alloy
  • Form Factor1U

Physical

  • Dimensions (W×D×H)483 x 265 x 44.5mm
  • Net Weight3.3 kg
