KOMPACT 10

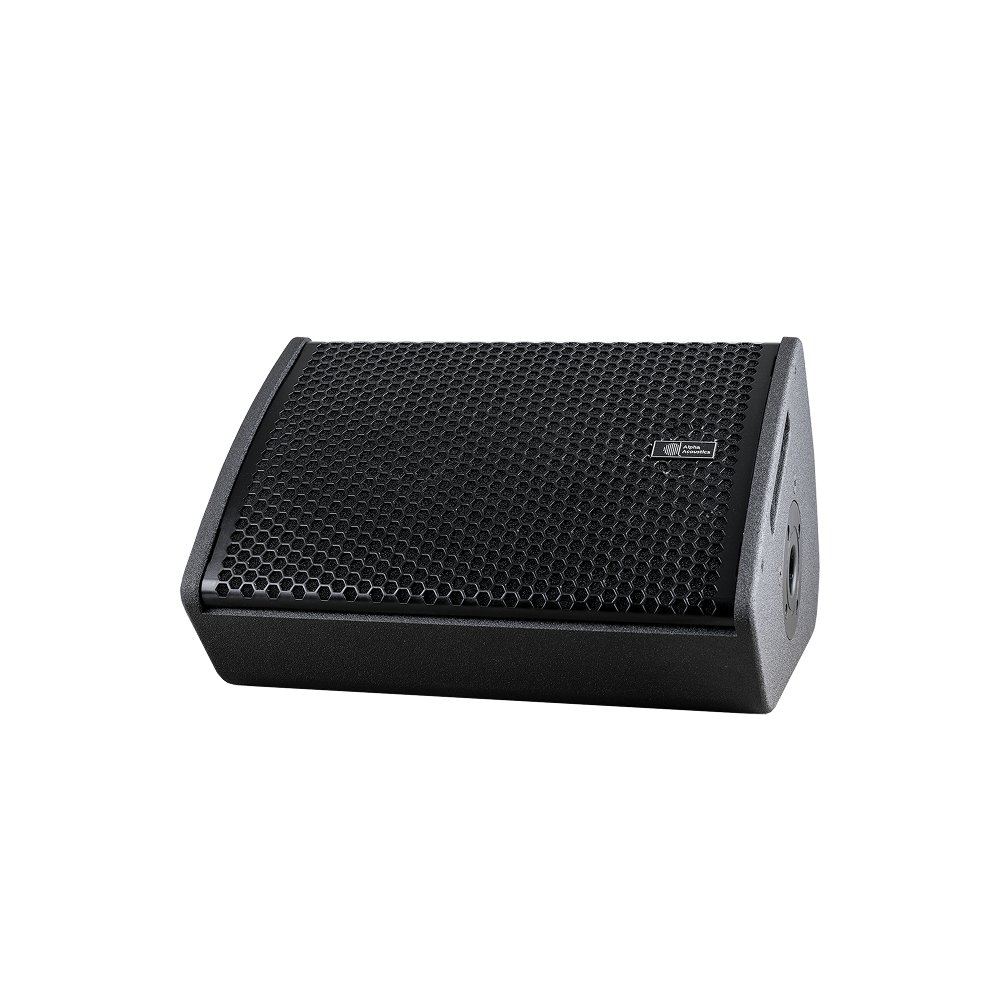

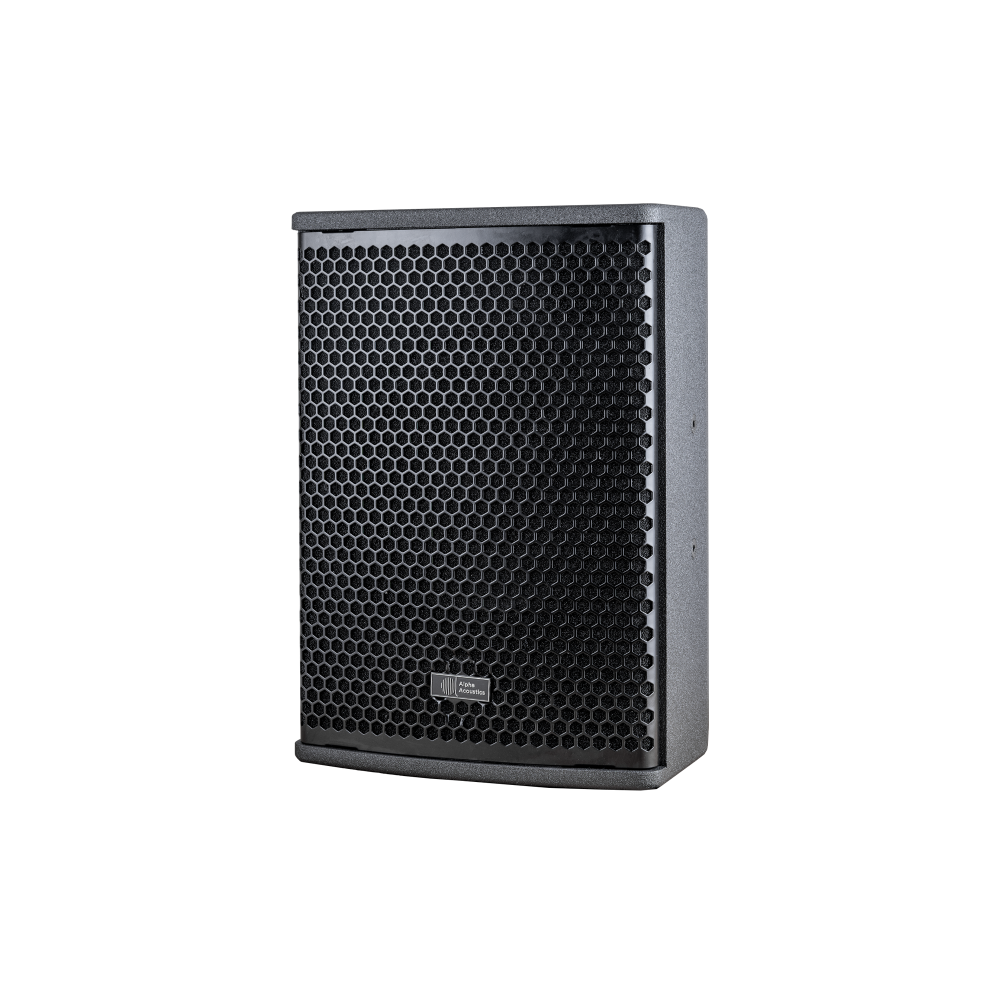

The Alpha Acoustics® KOMPACT 10 is a passive, compact coaxial loudspeaker designed for both FOH and monitor wedge applications. Its coaxial architecture delivers excellent clarity, speech intelligibility, and musical detail. With a wide 100° × 100° dispersion, KOMPACT 10 offers uniform coverage across the audience area. The rugged multi-layer birch plywood cabinet with textured finish ensures long-term reliability, while flexible mounting options (wedge, wall, pole, flying) make it a go-to for professional installs and live sound.
- Wide 100° × 100° dispersion for uniform coverage
- Multiple mounting: wedge, wall, pole, flying
- Excellent clarity, intelligibility, and musical detail
- Ideal for live sound and professional installations
Specialties of Speaker
-
Transducer
1 × 10″ Coaxial
-
Power (RMS)
350 W (1400 W Peak)
-
Maximum SPL
Up to 128 dB
-
Directivity
100° (H) × 100° (V)
-
Frequency Response
80 Hz – 19 kHz
-
Finishes
Black, Custom RAL colors
Specifications
Electroacoustic
- Transducer1 × 10″ Coaxial
- Frequency Response80 Hz – 19 kHz
- Sensitivity97 dB
- Maximum SPL128 dB
- Directivity100° (H) × 100° (V)
- Power (RMS/Peak)350 W / 1400 W
- Impedance8 Ω

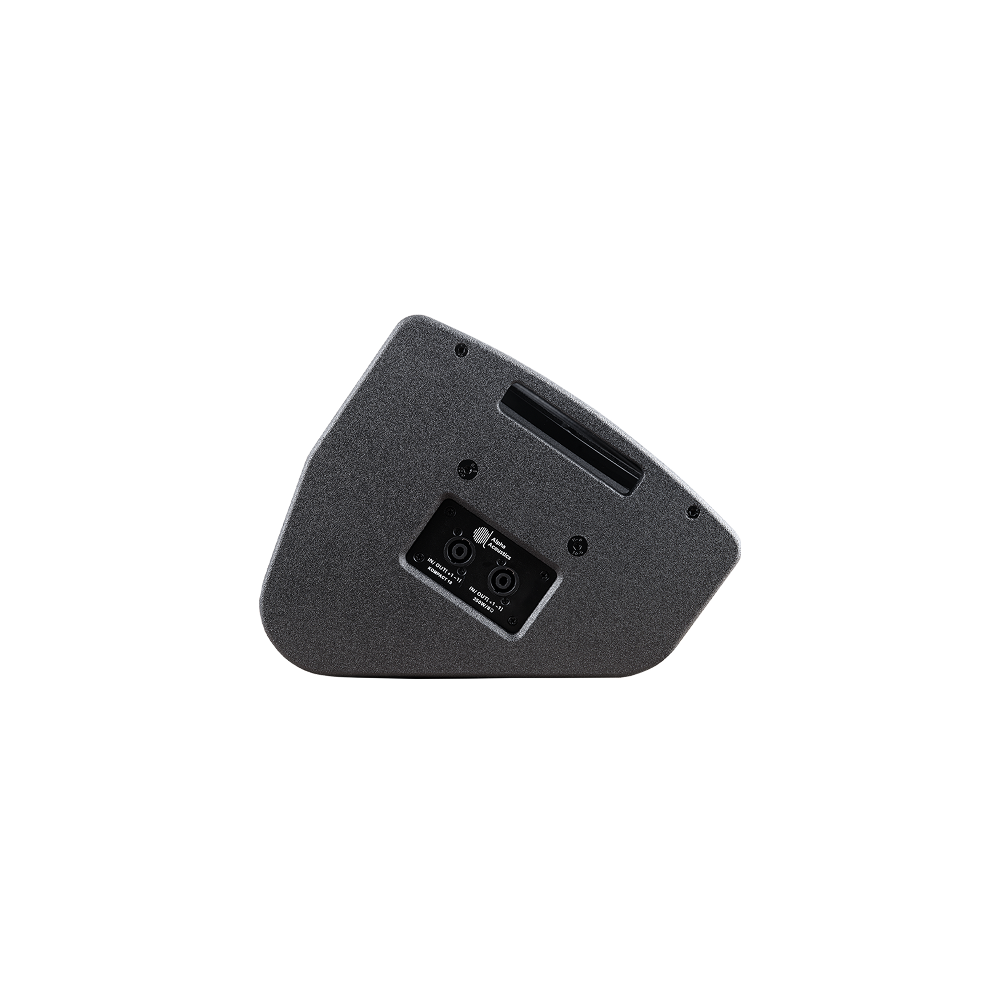

- Connectors2 × NL4 SpeakON
Design
- TypePassive coaxial point source speaker
- EnclosureMulti-layer birch plywood
- ProtectionBall-proof reinforced grille
- FinishBlack, Custom RAL colors
Physical
- Dimensions (W×D×H)310 x 290 x 450mm
- Weight11.5 kg
Suggested Amplifiers

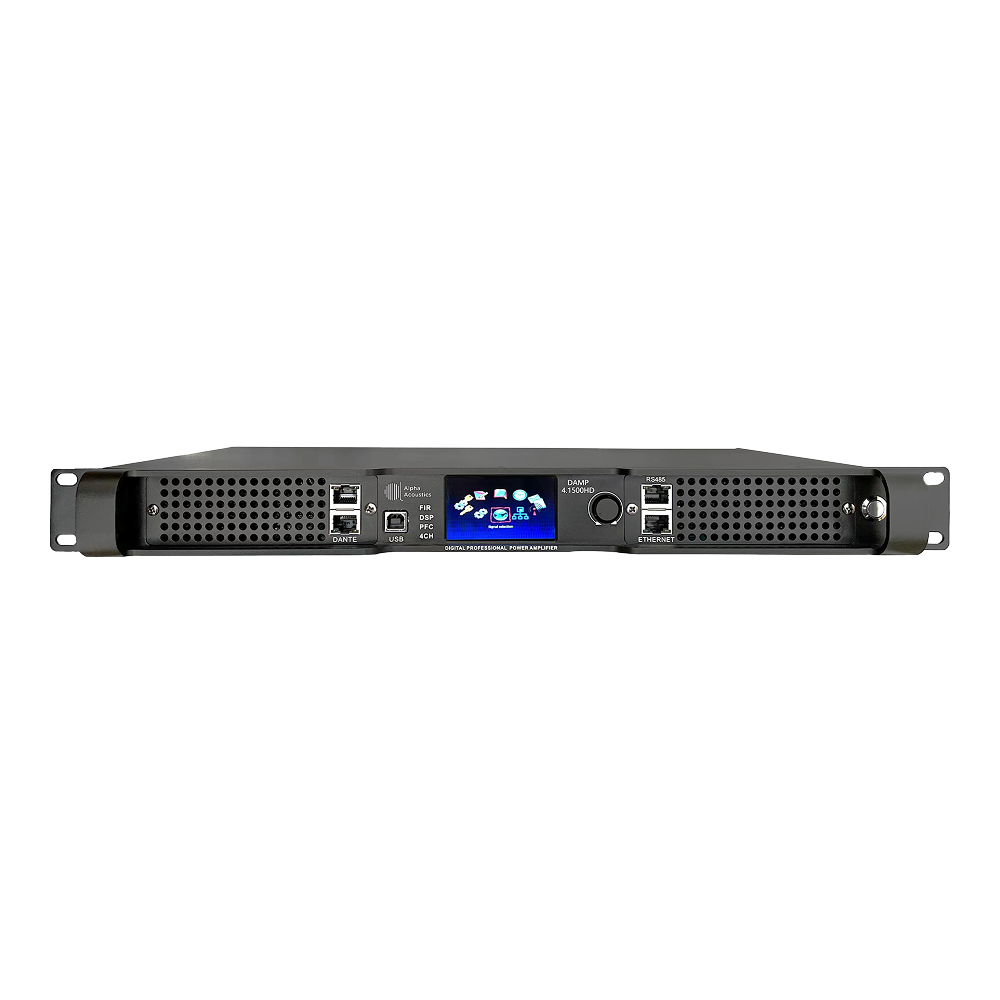

DAMP 4.1500HD
4 × 1500 W touring amplifier with DSP
- In-built DSP & FIR
- 4Ω, 8Ω
- Class-D with PFC
- 96 kHz / 24-bit AD/DA
- +18 dBu max input level
- 19", 1U design
Do More with KOMPACT 10
One box, many roles: FOH clarity, monitor precision, and easy mounting for any stage or space. Put KOMPACT 10 to work in your install or live rig and hear the difference.
