KNIGHT 26 ultra-compact arrayable point source

KNIGHT 26

The Alpha Acoustics® KNIGHT 26 is an ultra-compact, arrayable point-source loudspeaker that delivers high SPL from a slim, stylish enclosure. Configure it as a standalone system or a compact line array. Choose KNIGHT 26/80 with an 80° × 80° horn, or KNIGHT 26/100 with a 100° × 10° linear waveguide for array applications. Dual 6.5″ woofers and a 1″ compression driver provide powerful, articulate output for live stages, event venues, conference rooms, and multi-functional halls.

  • Dual 6.5″ woofers + 1″ compression driver
  • Standalone or compact line-array configurations
  • Multiple mounting accessories, rigging hardware & flying frame
  • Slim aesthetic fits venues, stages, and conference spaces

Specialties of Speaker

  • Transducer

    2 × 6.5″ LF, 1 × 1″ HF

  • Power (RMS)

    350 W (1400 W Peak)

  • Maximum SPL

    Up to 128 dB

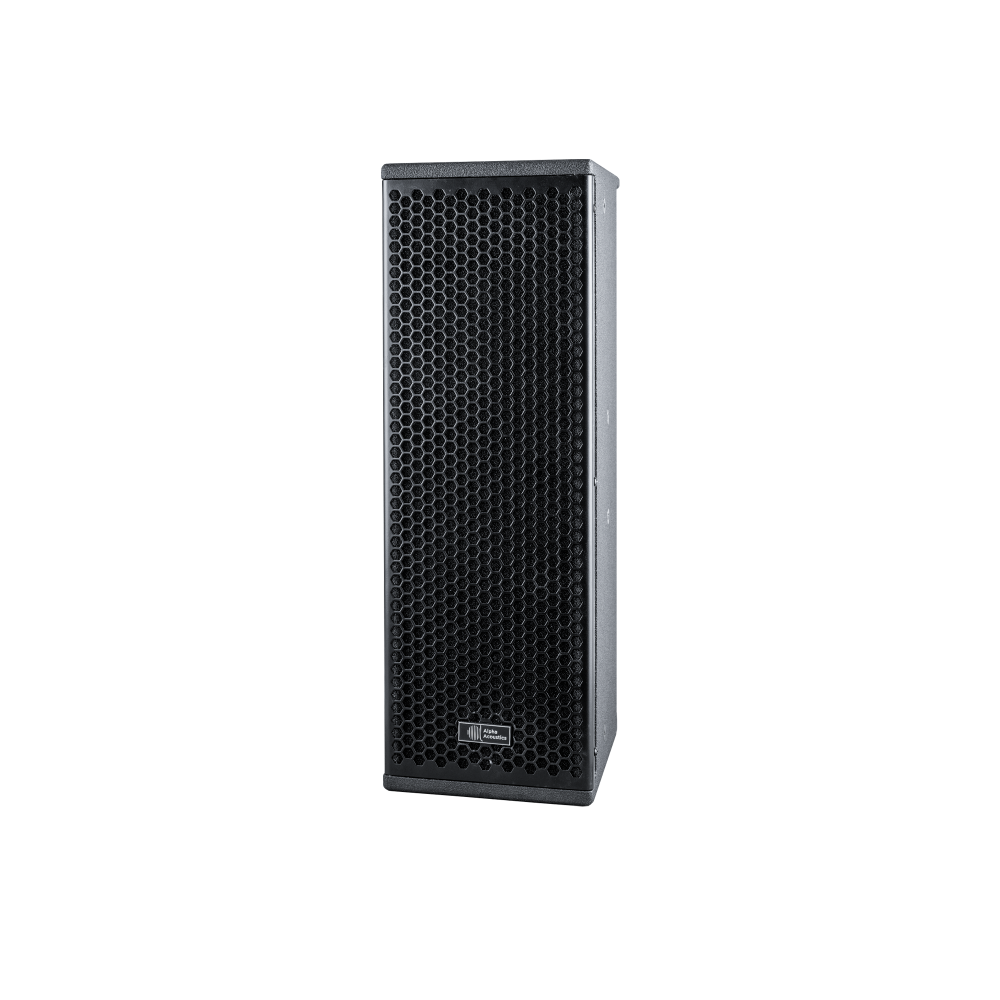

KNIGHT 26 detail image

  • Directivity Options

    26/80: 80° × 80°
    26/100: 100° × 10°

  • Frequency Response

    80 Hz – 18 kHz

  • Finishes

    Black, Custom RAL colors

Specifications

Electroacoustic

  • Transducer2 × 6.5″ LF, 1 × 1″ HF
  • Frequency Response80 Hz – 18 kHz
  • Sensitivity92 dB
  • Maximum SPL128 dB
  • Directivity (26/80)80° (H) × 80° (V)
  • Directivity (26/100)100° (H) × 10° (V)
  • Power (RMS/Peak)350 W / 1400 W
  • Impedance8 Ω
  • Connectors2 × NL4 SpeakON

Design

  • TypeArrayable passive point-source speaker
  • EnclosureMulti-layer birch plywood
  • ProtectionBall-proof reinforced grille
  • FinishBlack, Custom RAL colors

Physical

  • Dimensions (W×D×H)200 × 280 × 600 mm
  • Weight16.5 kg

Downloads

Documents

PDF icon Datasheet

Suggested Amplifiers

DAMP 4.350HD

DAMP 4.350HD

4 × 350 W touring amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω
  • Class-D with PFC
  • 96 kHz / 24-bit AD/DA
  • +18 dBu max input level
  • 19", 1U design
VIEW DETAILS
DAMP 4.1500HD

DAMP 4.1500HD

4 × 1500 W touring amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω
  • Class-D with PFC
  • 96 kHz / 24-bit AD/DA
  • +18 dBu max input level
  • 19", 1U design
VIEW DETAILS

Scale Your System with KNIGHT 26

Start with a single point-source or build a compact line array—the KNIGHT 26 keeps coverage tight, output high, and setup fast with flexible rigging and waveguide options.
