KITE 8 arrayable passive loudspeaker

KITE 8

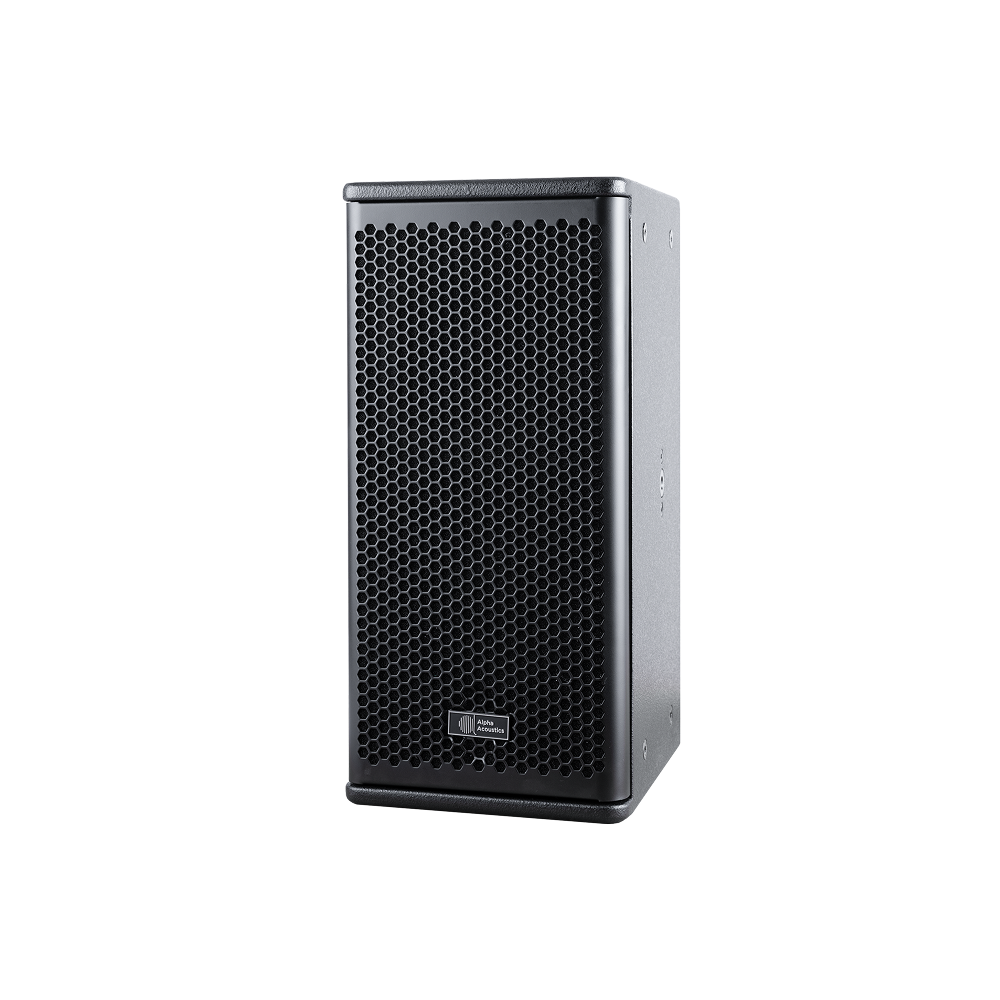

The Alpha Acoustics® KITE 8 is a pleasant-looking speaker that fits perfectly where high SPL is needed in a small package. The multi-layer birch plywood enclosure preserves tonal quality, while flexible horizontal and vertical mounting—and vertical/horizontal arraying—enable scalable configurations. Its compact size suits almost any space, and the reinforced metal grille protects against external vandalization.

  • Pleasing aesthetics to complement your interiors
  • Multi-layer birch plywood ensures excellent tonal quality
  • Lacquer finishing to reduce risk of scratches
  • Horizontal & vertical mounting flexibility
  • Small footprint that delivers a punch
  • Specially designed reinforced metal grille

Specialties of Speaker

  • Transducer

    1 × 8″ LF, 1 × 1″ HF

  • Power (RMS)

    250 W (1000 W Peak)

  • Maximum SPL

    Up to 124 dB

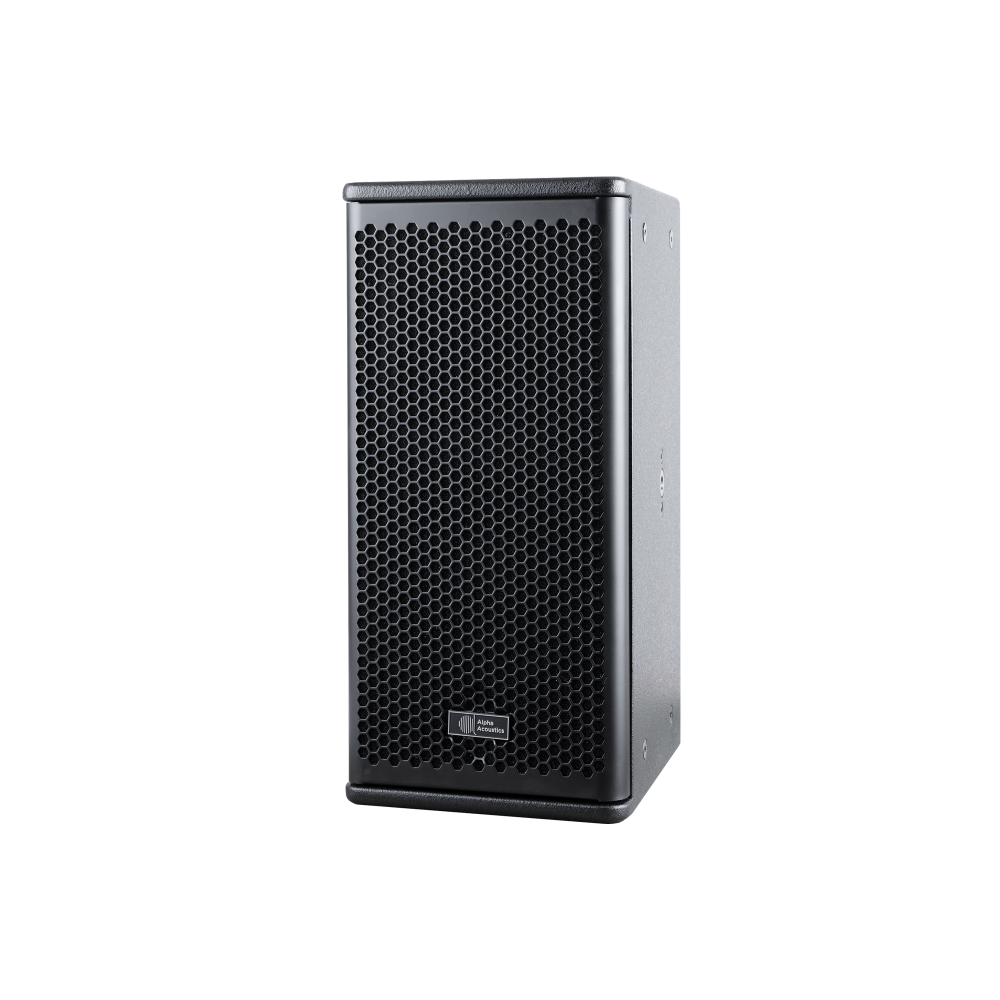

KITE 8 detail image

  • Directivity

    80° (H) × 50° (V)

  • Frequency Response

    75 Hz – 18 kHz

  • Finishes

    Black, Custom RAL colors

Specifications

Electroacoustic

  • Transducer1 × 8″ LF, 1 × 1″ HF
  • Frequency Response75 Hz – 18 kHz
  • Sensitivity94 dB
  • Maximum SPL124 dB
  • Directivity80° (H) × 50° (V)
  • Power (RMS/Peak)250 W / 1000 W
  • Impedance8 Ω

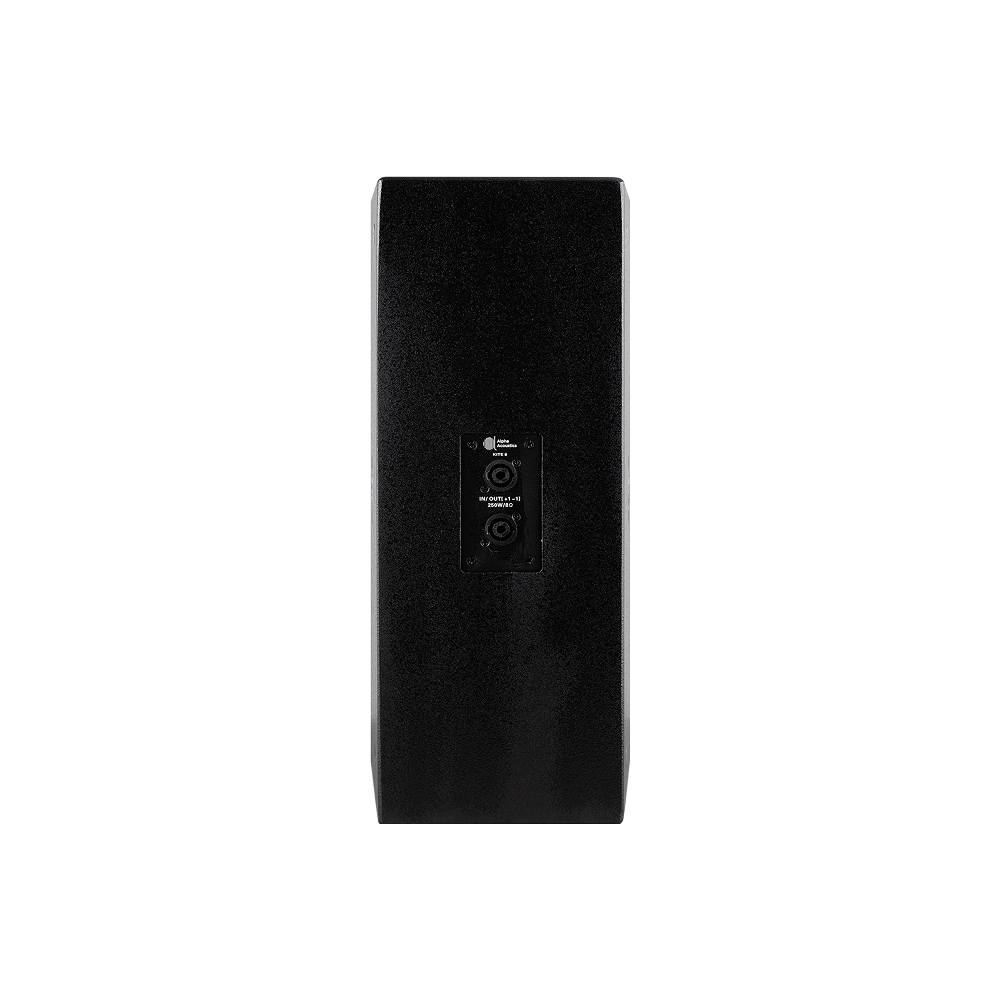

  • Connectors2 × NL4

Design

  • TypeArrayable 2-way passive point source
  • EnclosureMulti-layer birch plywood, lacquer finish
  • ProtectionBall-proof reinforced metal grille
  • FinishBlack, Custom RAL colors

Physical

  • Dimensions (W×D×H)230 X 230 X 485 mm
  • Weight13.8 kg

Downloads

Documents

PDF icon Datasheet

Suggested Amplifiers

DAMP 2.300CM

DAMP 2.300CM

2 × 300 W commercial amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω, 16Ω, 100V
  • Class-D with PFC
  • 48 kHz / 24-bit AD/DA
  • +14 dBu max input level
  • 19", 1U design
VIEW DETAILS
DAMP 4.300CM

DAMP 4.300CM

4 × 300 W commercial amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω, 16Ω, 100V
  • Class-D with PFC
  • 48 kHz / 24-bit AD/DA
  • +14 dBu max input level
  • 19", 1U design
VIEW DETAILS
DAMP 4.350HD

DAMP 4.350HD

4 × 350 W touring amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω
  • Class-D with PFC
  • 96 kHz / 24-bit AD/DA
  • +18 dBu max input level
  • 19", 1U design
VIEW DETAILS

Experience KITE 8
in Your Space

Compact footprint. Big performance. With arrayable flexibility, a rugged birch plywood body, and a reinforced metal grille, KITE 8 delivers clear, powerful sound for lounges, houses of worship, cafes, and compact venues—without compromising your interior aesthetics.
