KFOCAL 16

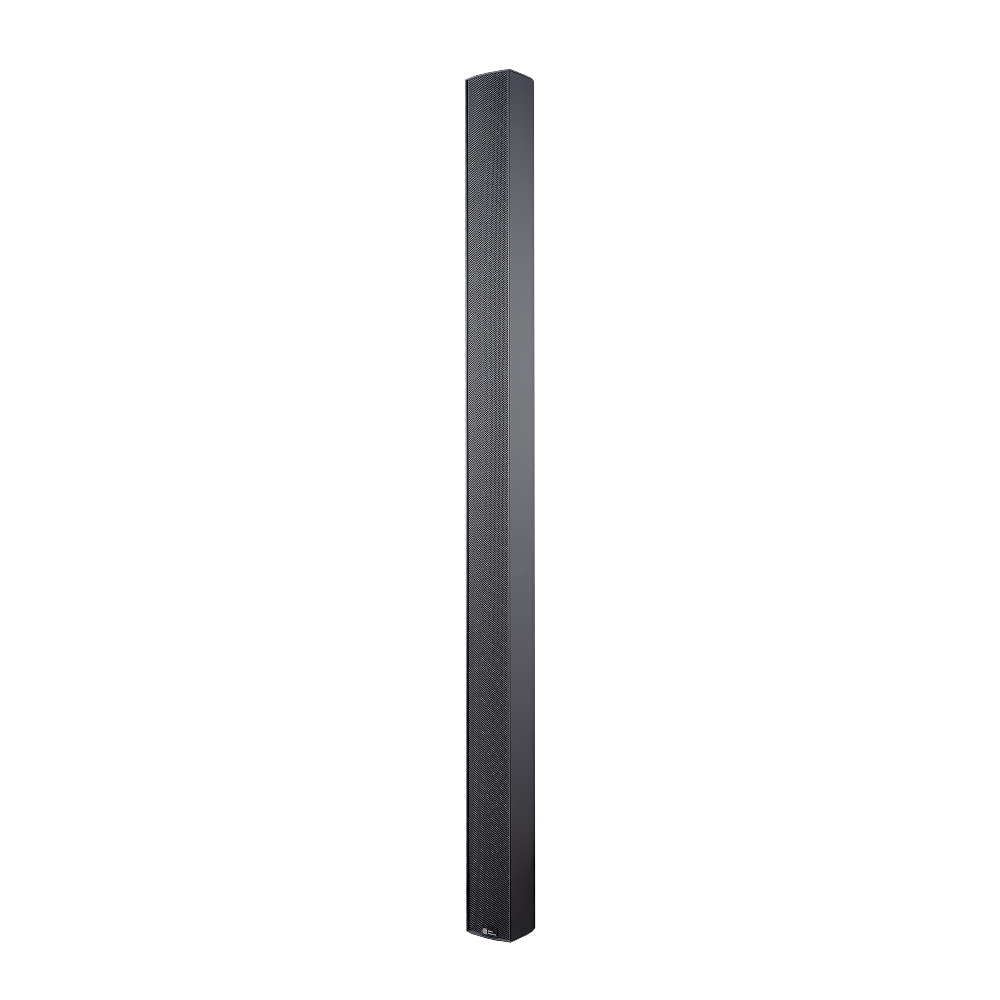

The Alpha Acoustics KFocal 16 is an active beam steering line array with Advanced beam-steering algorithm with side-lobe suppression suitable for high speech intelligibility in reverberant environments. The speaker provides a 130° wide horizontal coverage and a vertical adjustable angle of ±45°. Sixteen custom-designed 4-inch drivers are powered by a 16-channel amplifier with built-in DSP.
- Advanced beam-steering algorithm with side-lobe suppression
- Built-In 16 Chanel Amplifier
- Designed for high speech intelligibility in reverberant environments
- 16 X 4" drivers provide improved SPL coverage for up to 30m.
- Vertical beam control
- 130° Wide horizontal coverage
Specialties of Speaker
-
Transducer
16 × 4″ full-range
-
Power (RMS)
850 W
-
Maximum SPL
Up to 117 dB
-
Directivity
130° (H) × ±45° (V)
-
Frequency Response
100 Hz – 18 kHz
-
Finishes
Black, Custom RAL colors
Specifications
Electroacoustic
- Transducer16 × 4″ full-range
- Frequency Response100 Hz – 18 kHz
- Maximum SPL117 dB
- Directivity130° (H) × ±45° (V)
- Power (RMS)850 W
- Amplifier16-Channel Class D
- DSPAdvanced Beam Forming Algorithm with side-lobe suppression
- Beam Steering±45° Vertical
- ConnectorsBalanced audio input with Link Out, RJ45
Design
- TypeActive beam steering line array speaker
- EnclosureAluminum alloy
- ProtectionIP30
- FinishBlack, Custom RAL colors
Physical
- Dimensions (W×D×H)142 × 125 × 1888 mm
- Weight25 kg
Steer the Sound.
Reach Every Seat.
With advanced beam-steering, onboard DSP and optional Dante, KFOCAL 16 delivers focused, intelligible speech for auditoriums, worship spaces and large conference rooms.
Request a Demo
