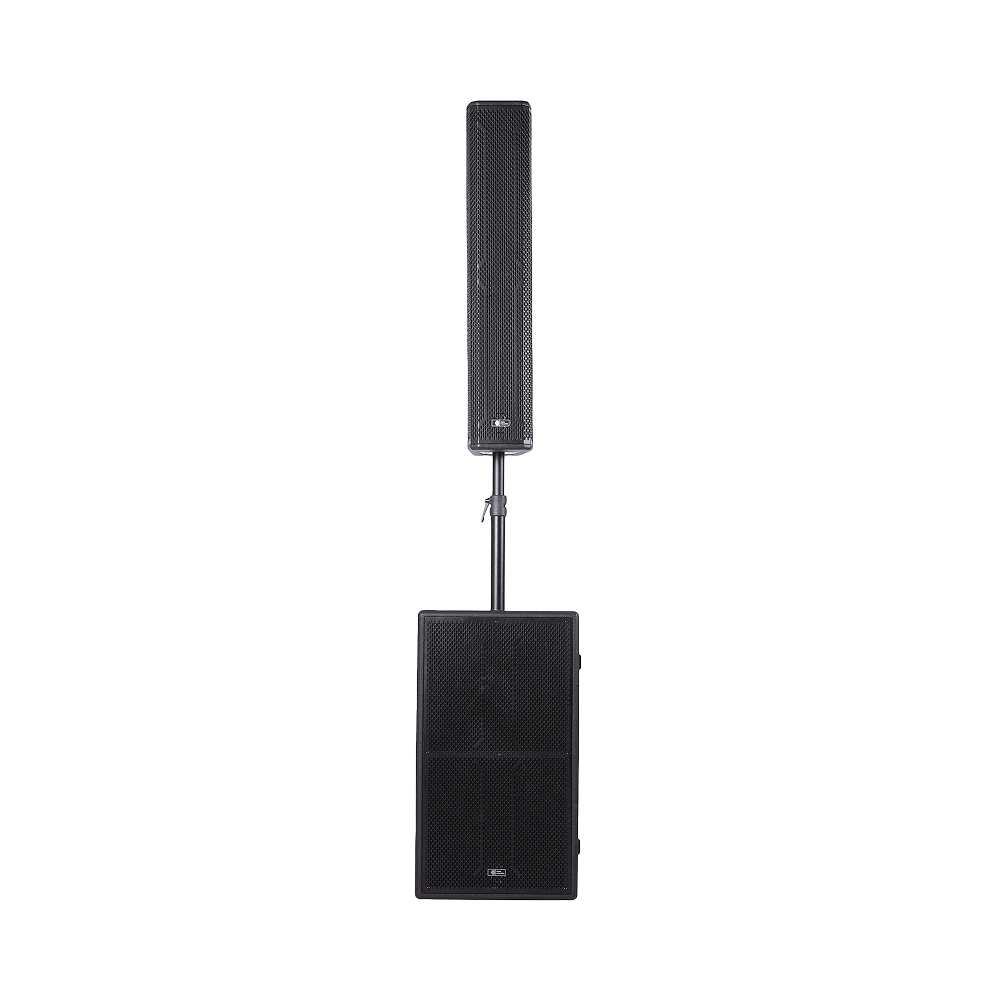

KAMIQ K6 compact column loudspeaker system

KAMIQ K6

The KAMIQ-K6 is a compact, high-SPL column loudspeaker system delivering outstanding intelligibility and uniform coverage up to 30 m. The KAMIQ-K6SAT uses four 6.5″ drivers and two horn-loaded 1″ HF drivers to maintain clarity in reverberant spaces, while the KAMIQ-K6SUB—featuring dual 15″ LF and onboard DSP—adds punchy, controlled low end. A slim, unobtrusive design and seamless arrayability make it ideal for touring bands, auditoriums and houses of worship.

  • Uniform coverage to 30 m with controlled vertical dispersion
  • Excellent speech intelligibility in reverberant spaces
  • DSP-powered dual 15″ sub for extended low-frequency punch
  • High SPL with a portable, slim form factor
  • Array-friendly system for scalable deployments

Specialties of Speaker

  • Transducer

    HF : 2 X 1.5"
    MF : 4 X 6.5"
    LF : 2 X 15"

  • Power (RMS)

    1500 W

  • Max SPL

    K6 SUB: 139 dB
    K6 STA: 131 dB

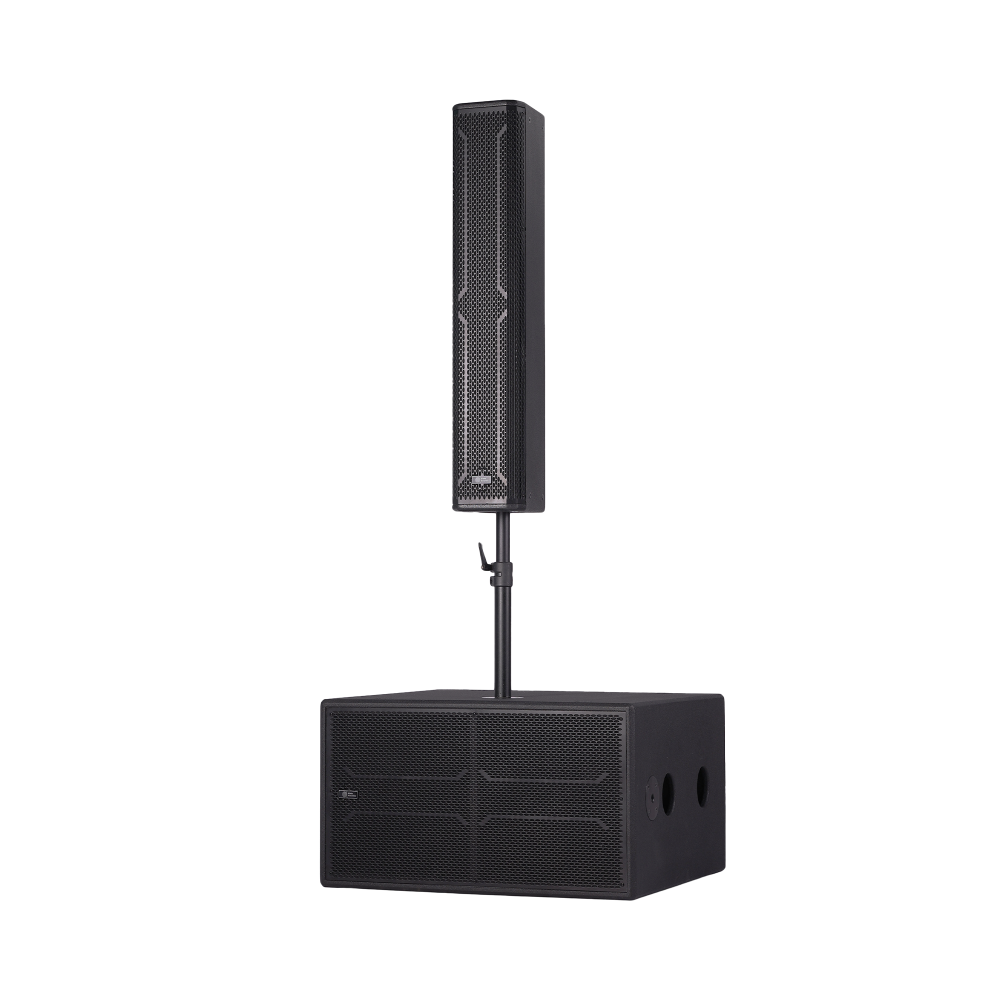

KAMIQ K6 detail image

  • Design

    Portable System

  • Frequency Response

    40 Hz - 20kHz

  • Finish

    Black, Custom RAL colors

Specifications

KAMIQ K6 SAT

  • DesignPassive Column Array
  • Transducer4 x 6.5" MF
    2 x 1.5" HF
  • Frequency Response80Hz - 20 kHz
  • Sensitivity98 dB
  • Maximum SPL131 dB
  • Impedance8 Ω
  • Power (RMS)500 W
  • Peak Power1000 W
  • Directivity100° (H) X 10° (V)
  • Connector2 X NL4 Speakon
  • ColorBlack and custom RAL colors
  • EnclosureMulti Layer Plywood
  • ProtectionBall-Proof
  • Dimensions187 x 246 x 990 mm (WxDxH)
  • Net Weight15 kg

KAMIQ - K6 SUB

  • DesignActive Subwoofer with amplifier for K6 SAT
  • Transducer2 x 15" LF
  • Frequency Response40Hz - 320 Hz
  • Sensitivity103 dB
  • Maximum SPL139 dB
  • Power (RMS)1000 W
  • Amplifier power700W (for K6SAT) +
    1000W (K6SUB)
  • Connector 2 x XLR Input
    2 x XLR Link Out
    2 x RJ45
    USB 2.0
    Speakon Out (for K6SAT)
    PowerCon Input with Link
  • ColorBlack and custom RAL colors
  • EnclosureMulti Layer Plywood
  • ProtectionBall-Proof
  • Dimensions800 x 750 x 450 mm (WxDxH)
  • Net Weight60 kg

Downloads

Documents

PDF icon Datasheet

Scale Your Sound with
KAMIQ K6

From worship halls to touring shows, KAMIQ K6 delivers even coverage, superb intelligibility and controlled, punchy lows in a slim, travel-friendly package.
