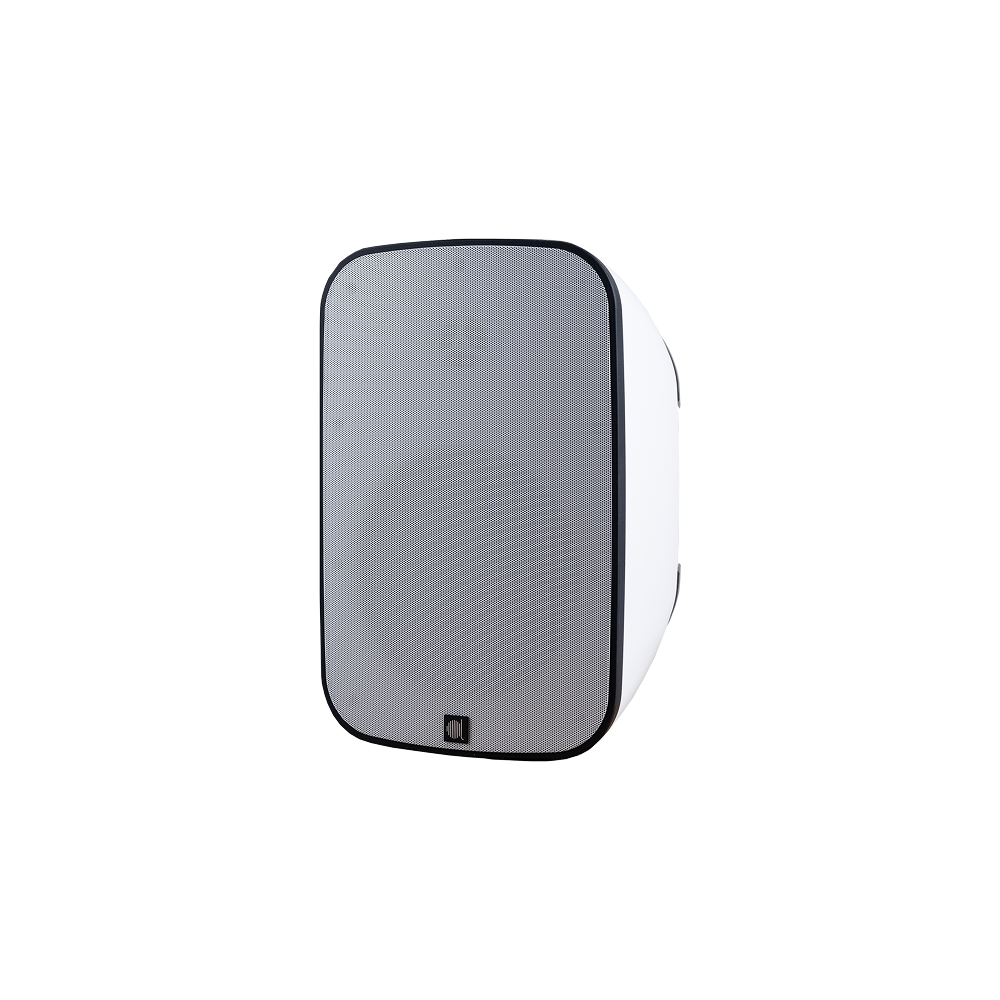

AMBIENCE W66T IP66 wall speaker with passive radiator

AMBIENCE W66T

The AMBIENCE W66T is a premium IP66 weather-resistant wall speaker pairing a 6.5″ woofer and 1″ tweeter with a passive radiator for deep lows, natural mids and smooth highs. Its controlled 90° × 80° coverage, flexible 8 Ω/70V/100V operation and robust enclosure make it ideal for hospitality, worship spaces, auditoriums, outdoor cafés and public venues.

  • Balanced sound with extended frequency response
  • Controlled 90° × 80° coverage for even distribution
  • 8 Ω or 70V/100V line operation
  • IP66 weather-resistant enclosure for reliable outdoor use
  • High-quality cabinet finish in Black or White
  • Compact, lightweight design for easy installation

Specialties of Speaker

  • Transducer

    1 × 6.5″ LF, 1 × 1″ HF, 1 × passive radiator

  • Power

    8 Ω: 60 W  |  100V: 40/20/10 W

  • Maximum SPL

    Up to 102 dB

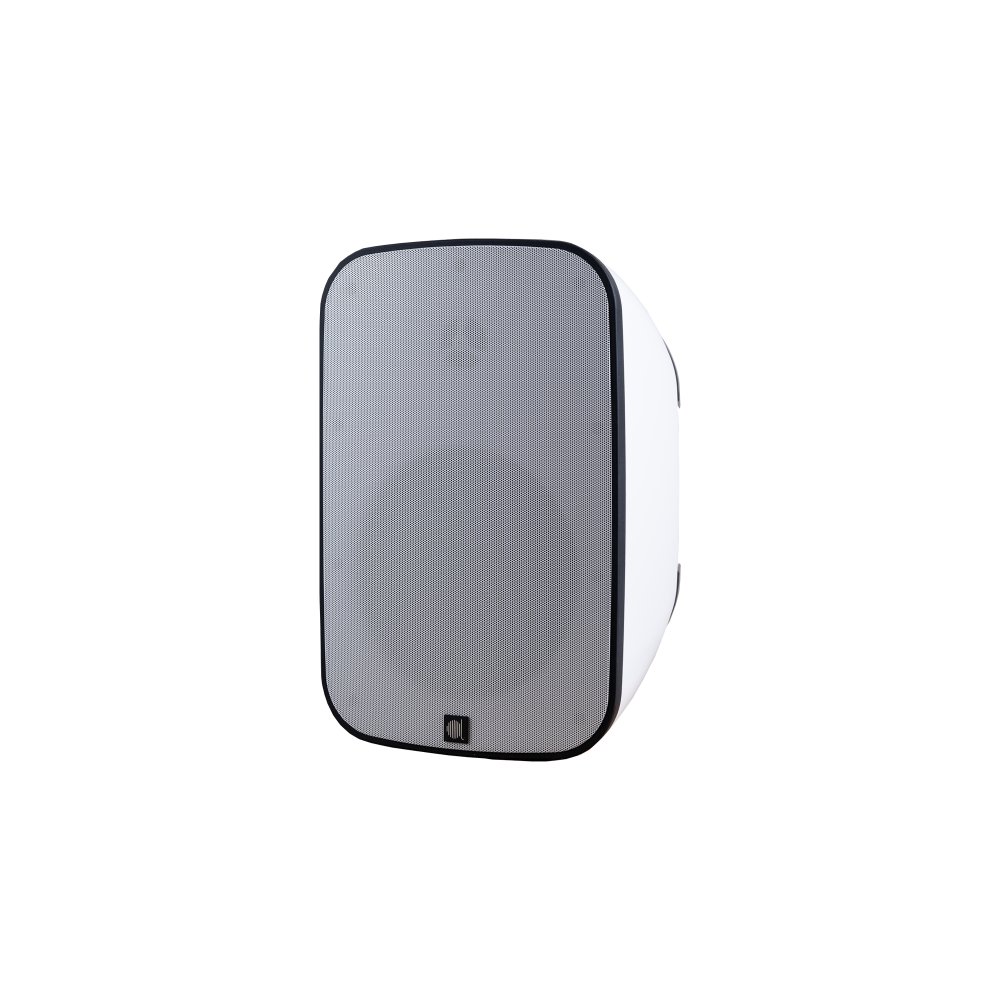

AMBIENCE W66T detail image

  • Directivity

    90° (H) × 80° (V)

  • Frequency Response

    42 Hz – 20 kHz

  • Finishes

    Black, White

Specifications

Electroacoustic

  • Transducer1 × 6.5″ LF, 1 × 1″ HF, 1 × passive radiator
  • Frequency Response42 Hz – 20 kHz
  • Sensitivity86 dB
  • Maximum SPL102 dB
  • Directivity90° (H) × 80° (V)
  • Power (Low-Z)8 Ω: 60 W
  • Power (100V taps)40 W / 20 W / 10 W
  • System CompatibilityLow-impedance & 70V/100V distributed audio
  • ConnectorsBlock connectors

Design

  • TypeWall mount speaker with passive radiator
  • EnclosureABS with metal grill
  • ProtectionIP66
  • FinishBlack, White

Physical

  • Dimensions (W × D × H)200 × 195 × 285 mm
  • Weight3.5 kg

Downloads

Documents

PDF icon Datasheet

Suggested Amplifiers

DAMP 2.300CM

DAMP 2.300CM

2 × 300 W commercial amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω, 16Ω, 100V
  • Class-D with PFC
  • 48 kHz / 24-bit AD/DA
  • +14 dBu max input level
  • 19", 1U design
VIEW DETAILS
DAMP 4.300CM

DAMP 4.300CM

4 × 300 W commercial amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω, 16Ω, 100V
  • Class-D with PFC
  • 48 kHz / 24-bit AD/DA
  • +14 dBu max input level
  • 19", 1U design
VIEW DETAILS

All-Weather Audio. Anywhere You Need It.

AMBIENCE W66T delivers extended, even coverage with IP66 protection and flexible power options - perfect for outdoor cafés, hospitality and worship spaces that demand reliability and great sound.
