AMBIENCE S10T 10-inch ceiling subwoofer

AMBIENCE S10T

The Alpha Acoustics® AMBIENCE S10T is a powerful 10″ ceiling subwoofer that extends system response down to 35 Hz. With high power handling and Low-Z/100V flexibility, S10T adds warmth and impact to distributed audio in retail, hospitality and corporate spaces—while blending discreetly into the ceiling.

  • 10″ LF driver for deep, musical bass to 35 Hz
  • Low-impedance or 70V/100V operation with multiple taps
  • High power handling up to 240 W (Low-Z)
  • Discreet in-ceiling design for seamless integration

Specialties of Speaker

  • Transducer

    1 × 10″ LF

  • Power

    4 Ω: 240 W  |  100V: 240/120/60 W

  • Maximum SPL

    Up to 112 dB

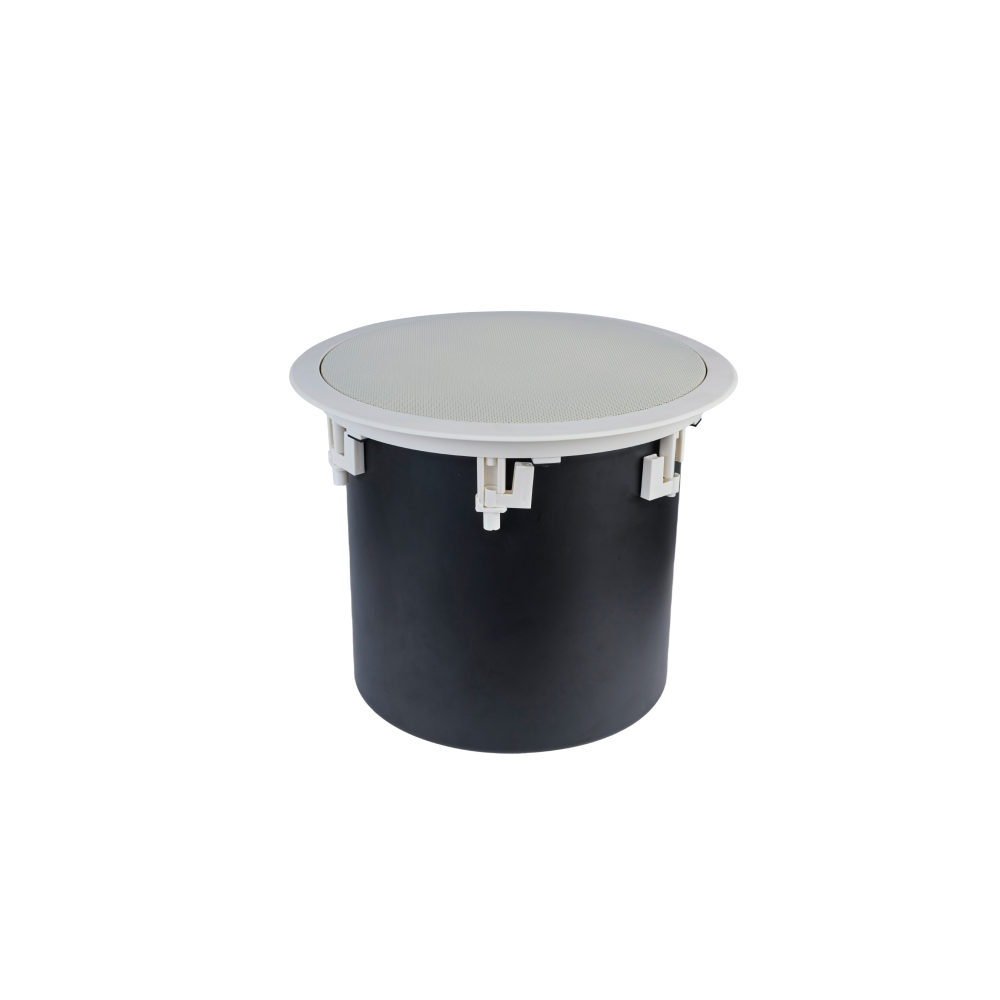

AMBIENCE S10T detail image
  • Frequency Response

    35 Hz – 150 Hz

  • Sensitivity

    89 dB

  • Finishes

    White

Specifications

Electroacoustic

  • Transducer1 × 10″ LF
  • Frequency Response35 Hz – 150 Hz
  • Sensitivity89 dB
  • Maximum SPL112 dB
  • Power (Low-Z)4 Ω: 240 W
  • Power (100V taps)240 W / 120 W / 60 W
  • System CompatibilityLow-impedance & 70V/100V distributed audio
  • ConnectorsSpring loaded connectors

Design

  • TypeCeiling subwoofer
  • EnclosureABS with metal grill
  • ProtectionIP30
  • FinishWhite

Physical

  • Dimensions (Dia × H)360 × 330 mm
  • Cutout Size330 mm (Dia)
  • Weight9 kg

Downloads

Documents

Suggested Amplifiers

DAMP 2.300CM

DAMP 2.300CM

2 × 300 W commercial amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω, 16Ω, 100V
  • Class-D with PFC
  • 48 kHz / 24-bit AD/DA
  • +14 dBu max input level
  • 19", 1U design
VIEW DETAILS
DAMP 4.300CM

DAMP 4.300CM

4 × 300 W commercial amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω, 16Ω, 100V
  • Class-D with PFC
  • 48 kHz / 24-bit AD/DA
  • +14 dBu max input level
  • 19", 1U design
VIEW DETAILS

Add Depth. Keep It Discreet.

AMBIENCE S10T brings rich, extended bass to distributed systems—choose Low-Z or 100V taps to match your design and deliver impact without visual clutter.
