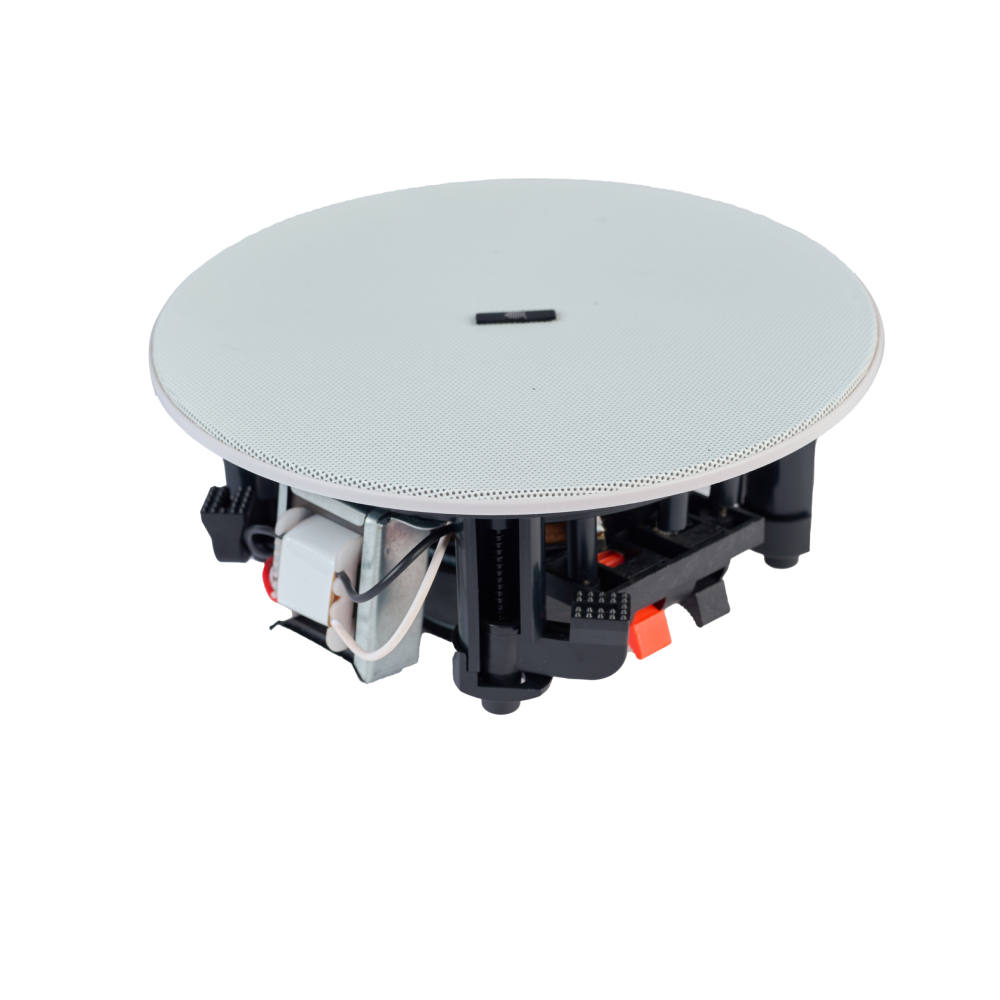

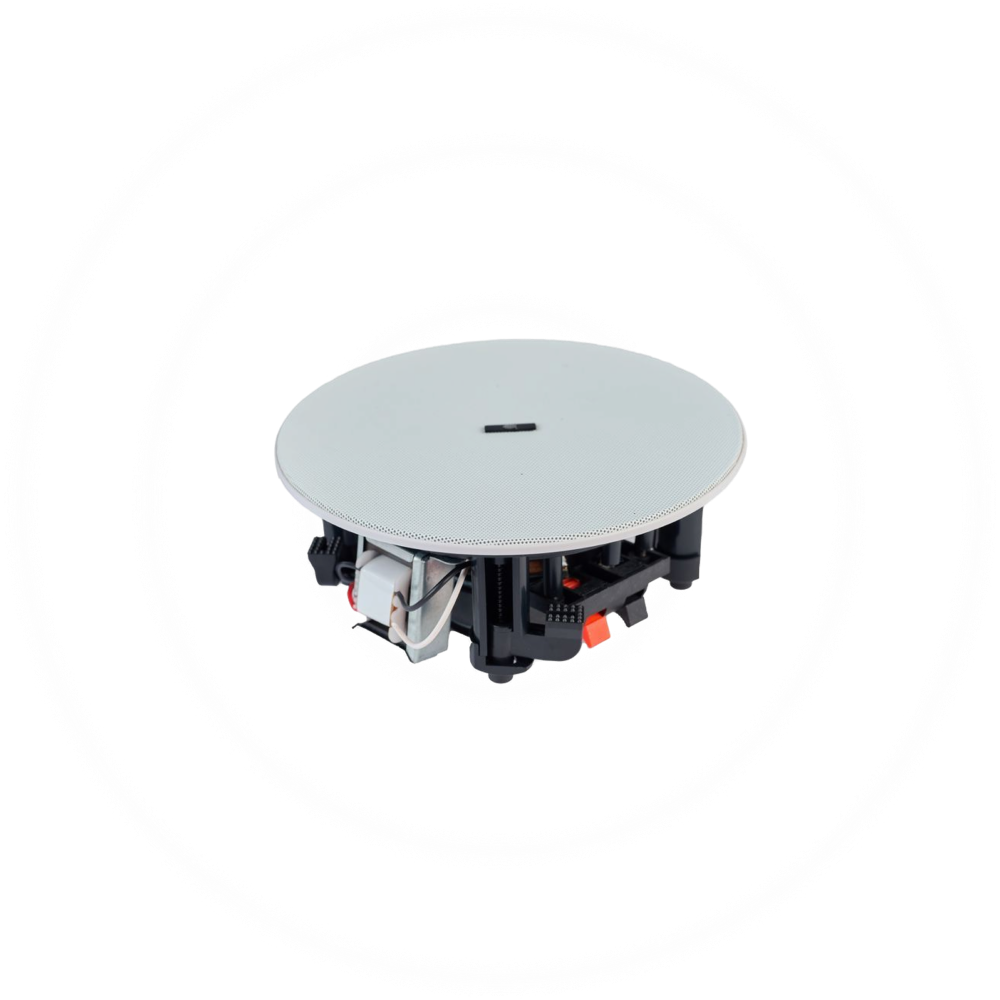

AMBIENCE C45T
The Alpha Acoustics® AMBIENCE C45T is a premium 4″ coaxial ceiling speaker for crystal-clear speech and smooth background music. A Kevlar woofer with a silk-dome tweeter delivers rich lows, natural mids and detailed highs, while wide 120° conical coverage ensures even distribution. Its slim, discreet design blends into ceilings and supports both low-impedance and 70V/100V systems.
- 120° wide coverage for consistent audio
- 8 Ω or 70V/100V distributed operation
- Low-profile, elegant rimless appearance
- Ideal for speech and background music
Specialties of Speaker
-
Transducer

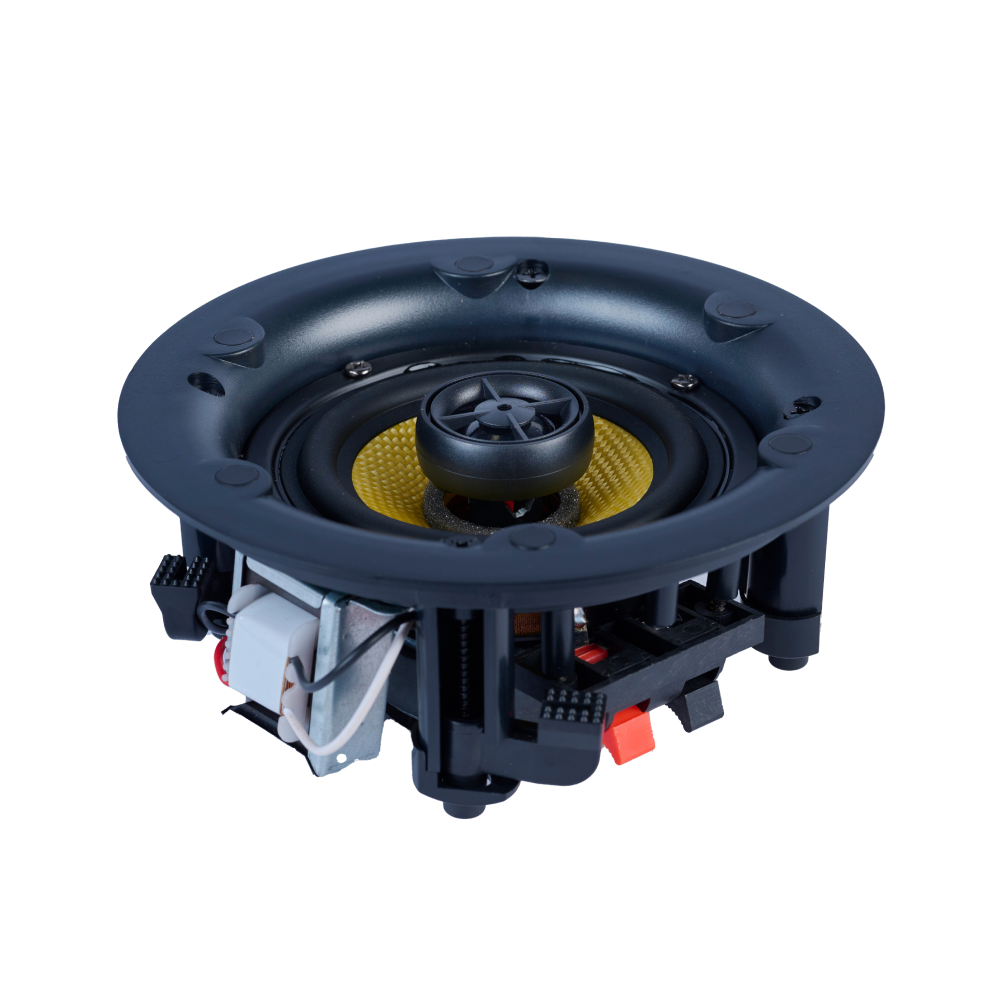

4″ Kevlar woofer + 1″ silk-dome tweeter (coaxial)
-
Power
8 Ω: 15 W | 100V: 15/7.5/3.8 W
-
Maximum SPL
Up to 96 dB
-
Directivity
120° conical
-
Frequency Response
80 Hz – 20 kHz
-
Finishes
White
Specifications
Electroacoustic
- Transducer4″ Kevlar woofer + 1″ silk-dome tweeter (coaxial)
- Frequency Response80 Hz – 20 kHz
- Sensitivity88 dB
- Maximum SPL96 dB
- Directivity120° conical
- Power (Low-Z)8 Ω: 15 W
- Power (100V taps)15 W / 7.5 W / 3.8 W
- System CompatibilityLow-impedance & 70V/100V distributed audio

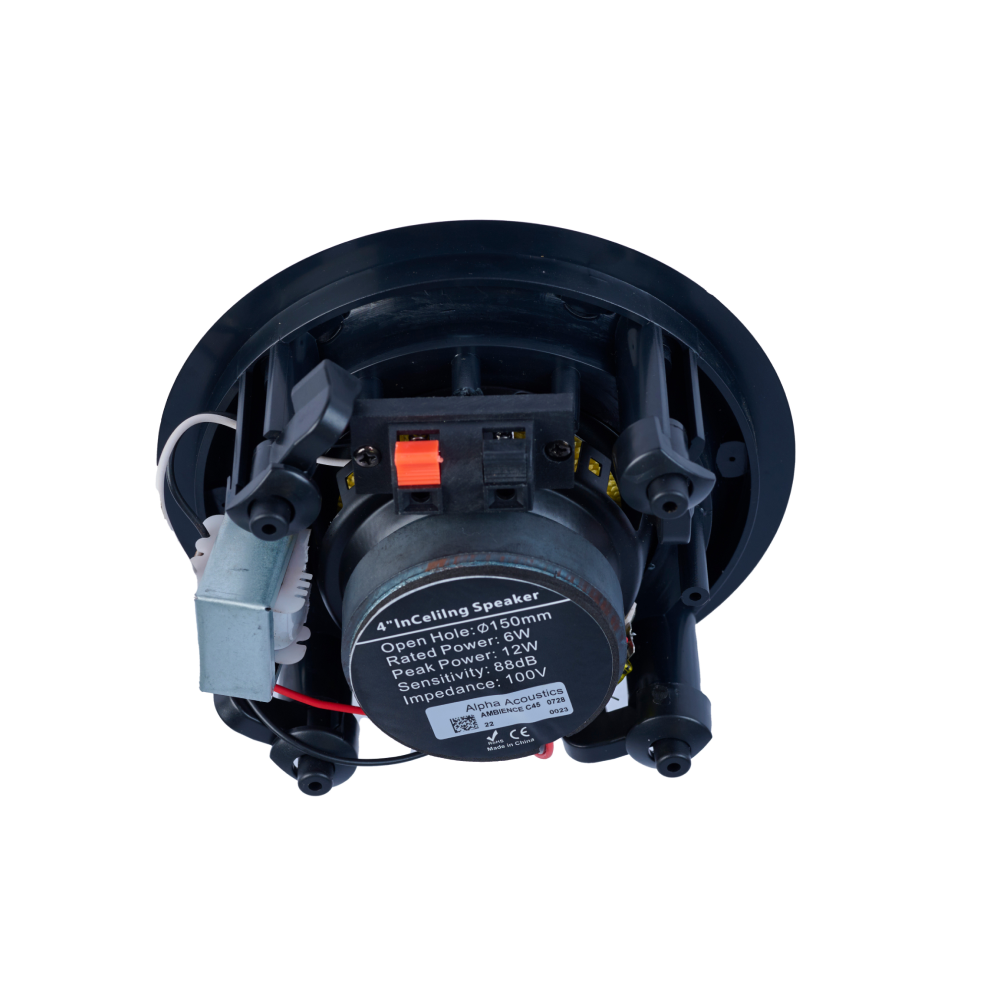

- ConnectorsSpring loaded connectors
Design
- TypeCoaxial ceiling speaker
- EnclosureABS with metal grill
- ProtectionIP30
- FinishWhite
Physical
- Dimensions (Dia × H)170 × 70 mm
- Cutout Size—
- Weight1 kg
