ALPHA X 15

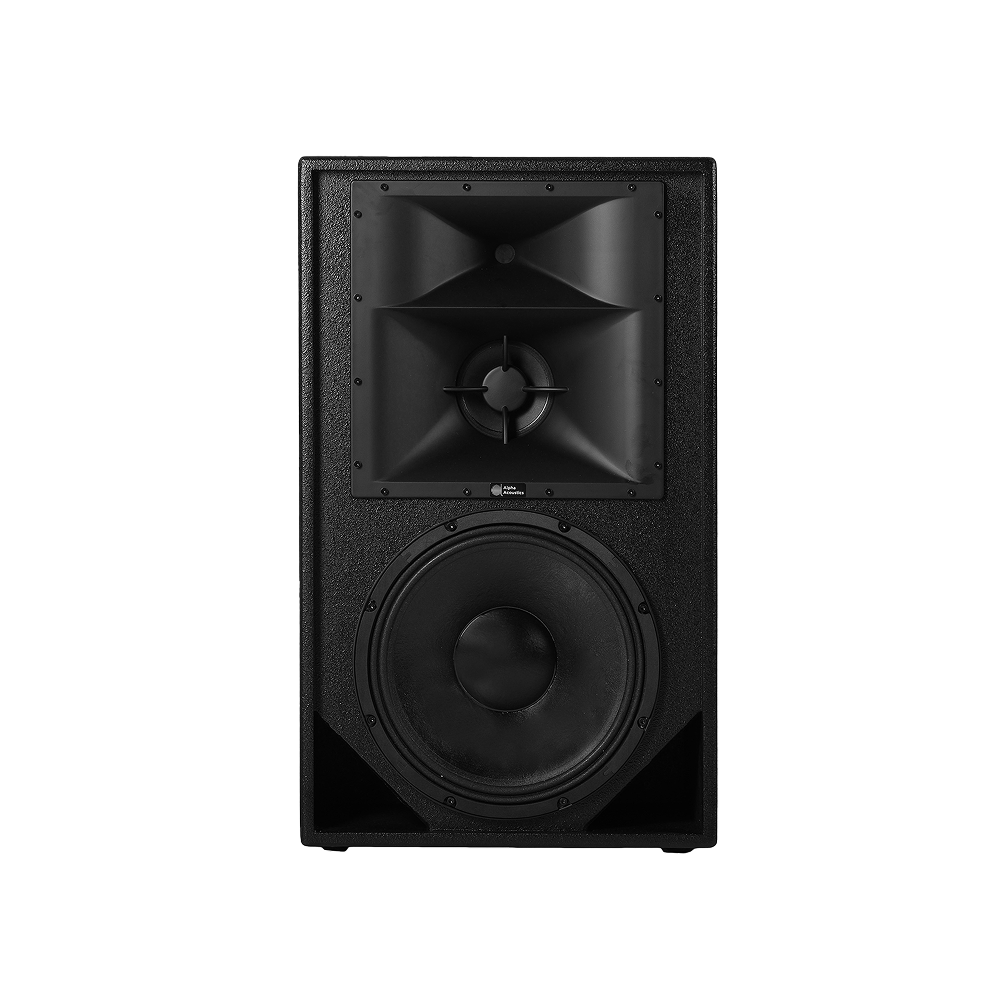

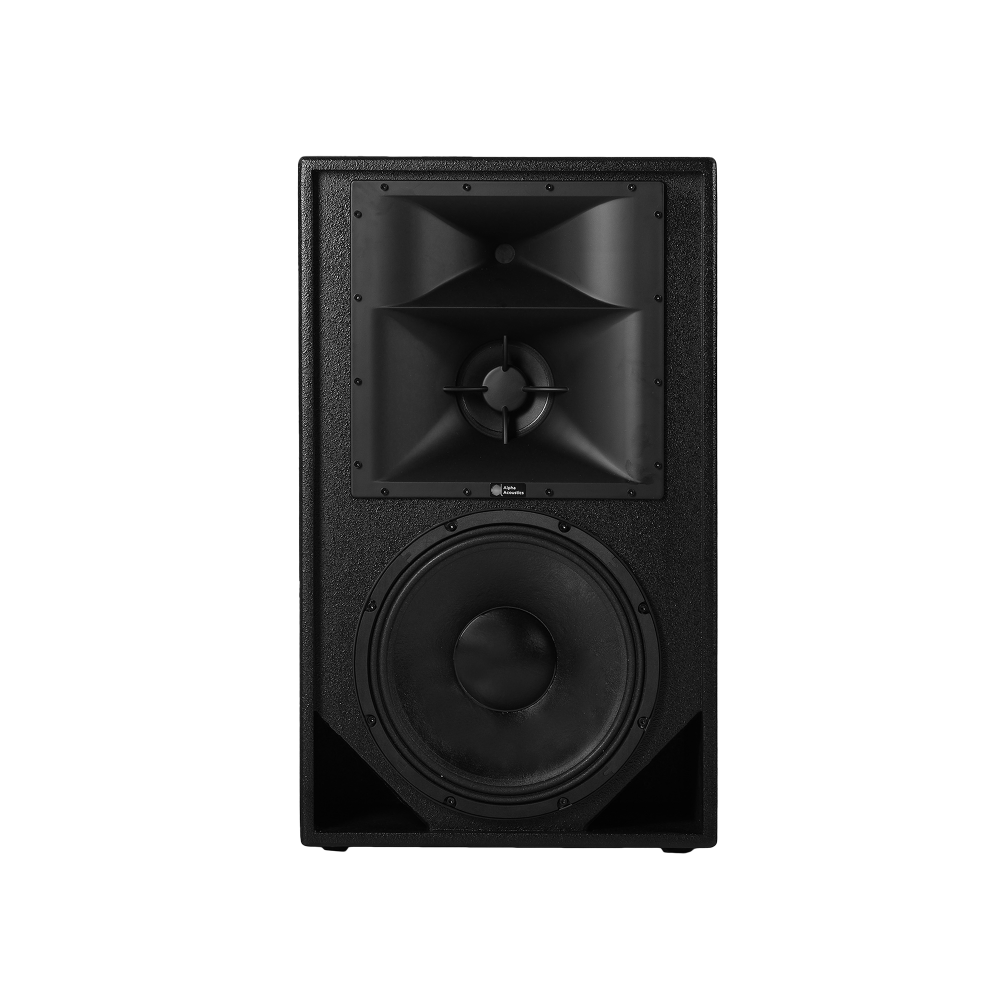

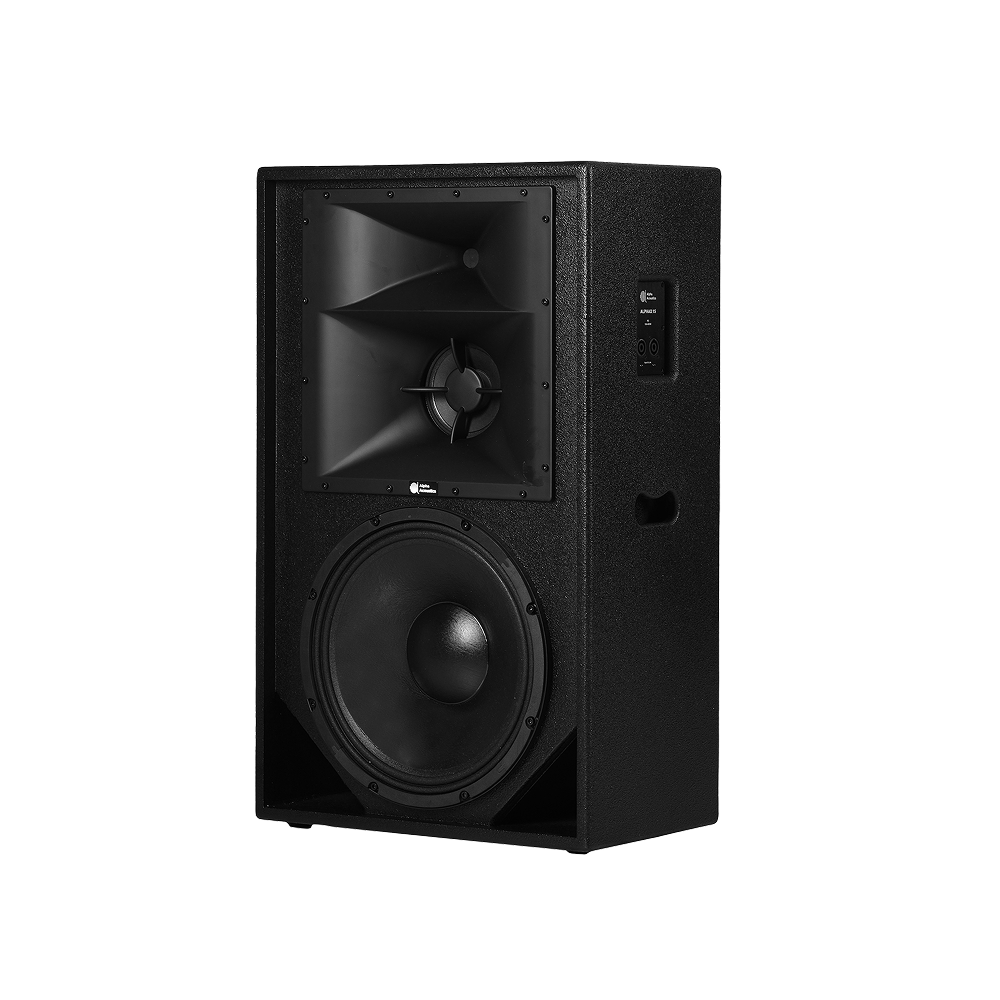

The ALPHA X 15 is a high-performance 3-way behind the screen LCR speaker designed for cinema and professional AV installations. Featuring a 15" low-frequency driver, 6.5" midrange, and 1" high-frequency driver, it delivers full-range sound with exceptional clarity, punch, and detail. Built in a rigid multi-layer plywood cabinet with a sleek black finish, the ALPHA X 15 combines performance with structural durability, making it ideal for permanent installations behind screens. This speaker is optimized for professional environments where accuracy, power, and consistency are critical, providing an immersive listening experience for every audience member.
- 3-way design for precise sound dynamic sound
- Maximum SPL: 129 dB with exceptional dynamic range
- Multi-layer plywood cabinet with professional black finish
- Engineered for cinemas and high-end AV installations
Specialties of Speaker
-
Transducer
1 × 15″ LF
1 × 6.5″ MF
1 × 1″ HF -
Power (RMS)
500 W (2000 W Peak)
-
Maximum SPL
Up to 129 dB
-
Design
Behind the Screen
3-way -
Frequency Response
30 Hz – 20 kHz
-
Finish
Black
Specifications
Electroacoustic
- Transducer1 × 15″
LF
1 × 6.5″ MF
1 × 1″ HF - Frequency Response30 Hz – 20 kHz
- Power (RMS)500 W
- Peak Power2000 W
- Impedance8 Ω
- Sensitivity99 dB
- Maximum SPL129 dB
- Connectors2 × NL4 Speakon
Design
- TypeBehind-the-Screen
3-Way Speaker - MaterialsMulti-layer Plywood
- ColorBlack
Physical
- Dimensions (W × D × H)530 x 320 x 860 mm
- Mounting—
- Net Weight39 kg
Suggested Amplifiers
Big Screen. Bigger Sound.
ALPHA X 15 brings reference-grade clarity and punch behind the screen—crafted for cinemas that demand power, precision, and consistency night after night.
Request a Demo
